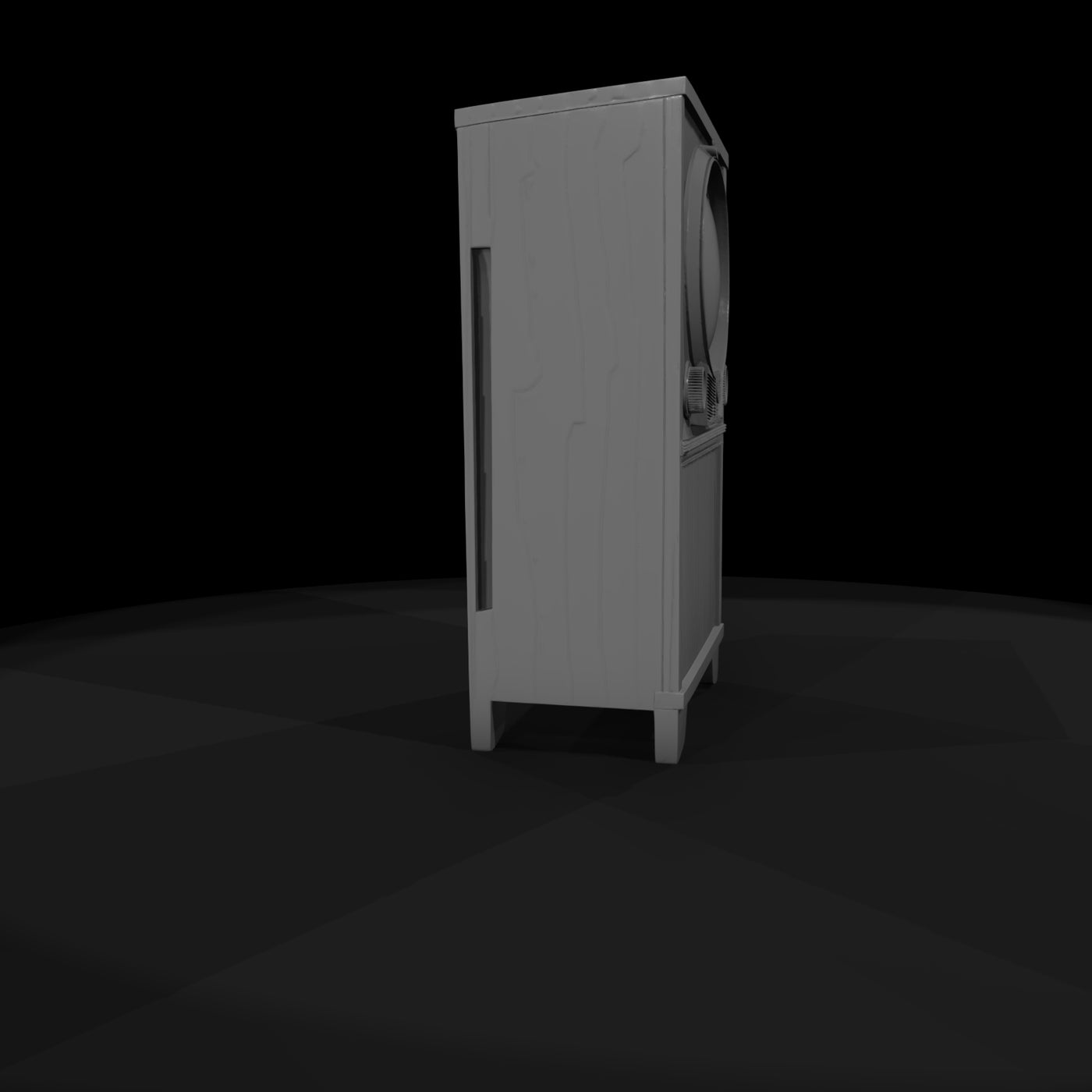

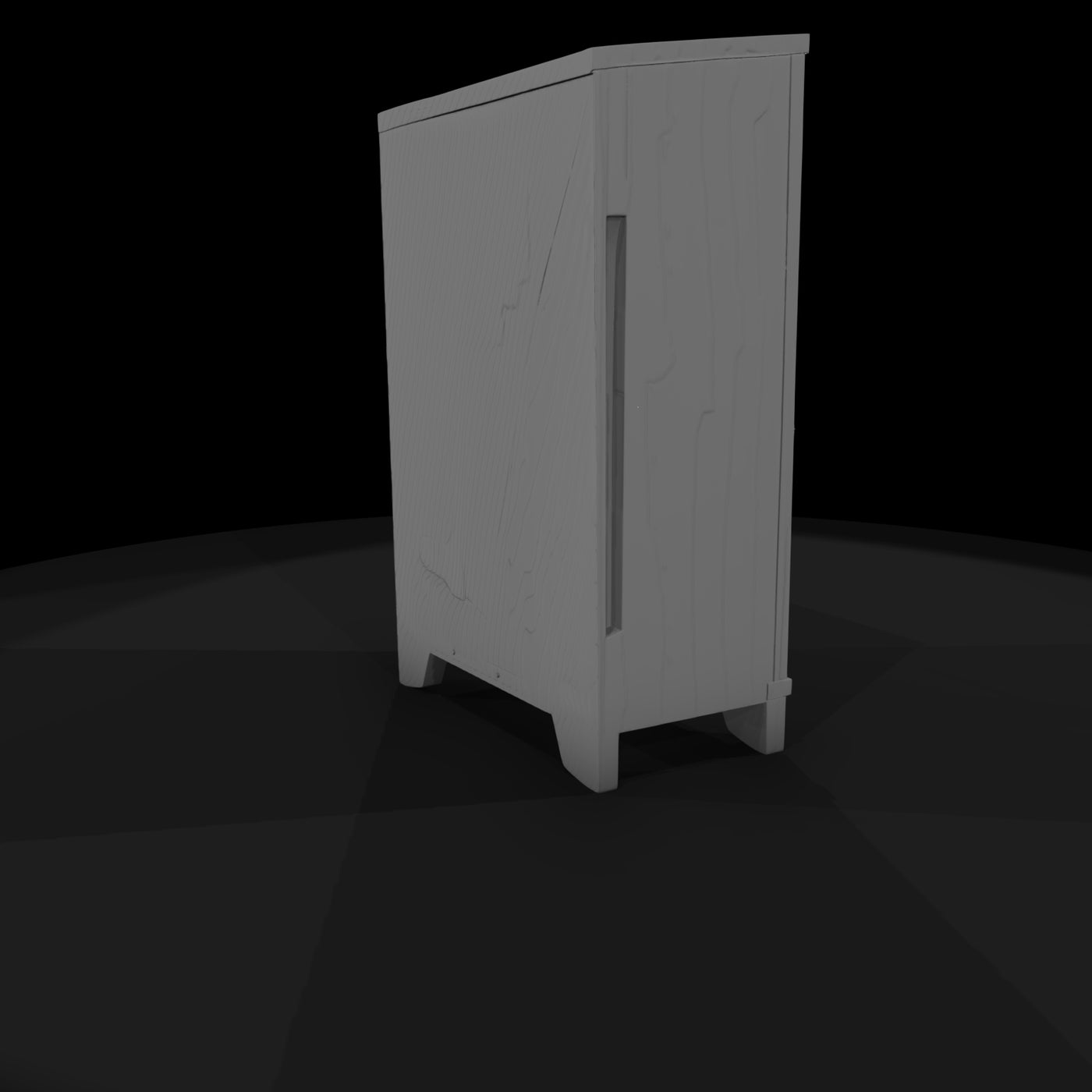

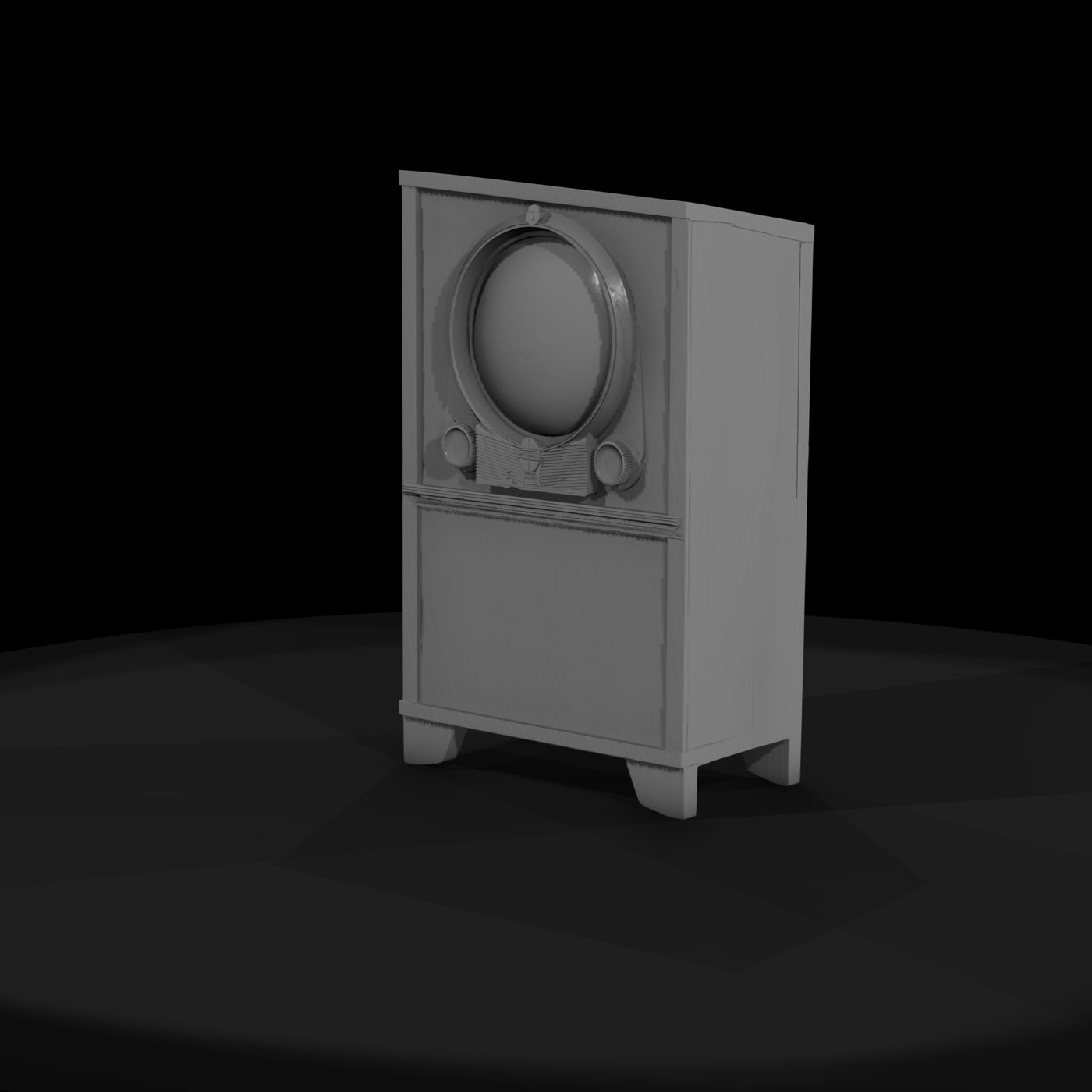

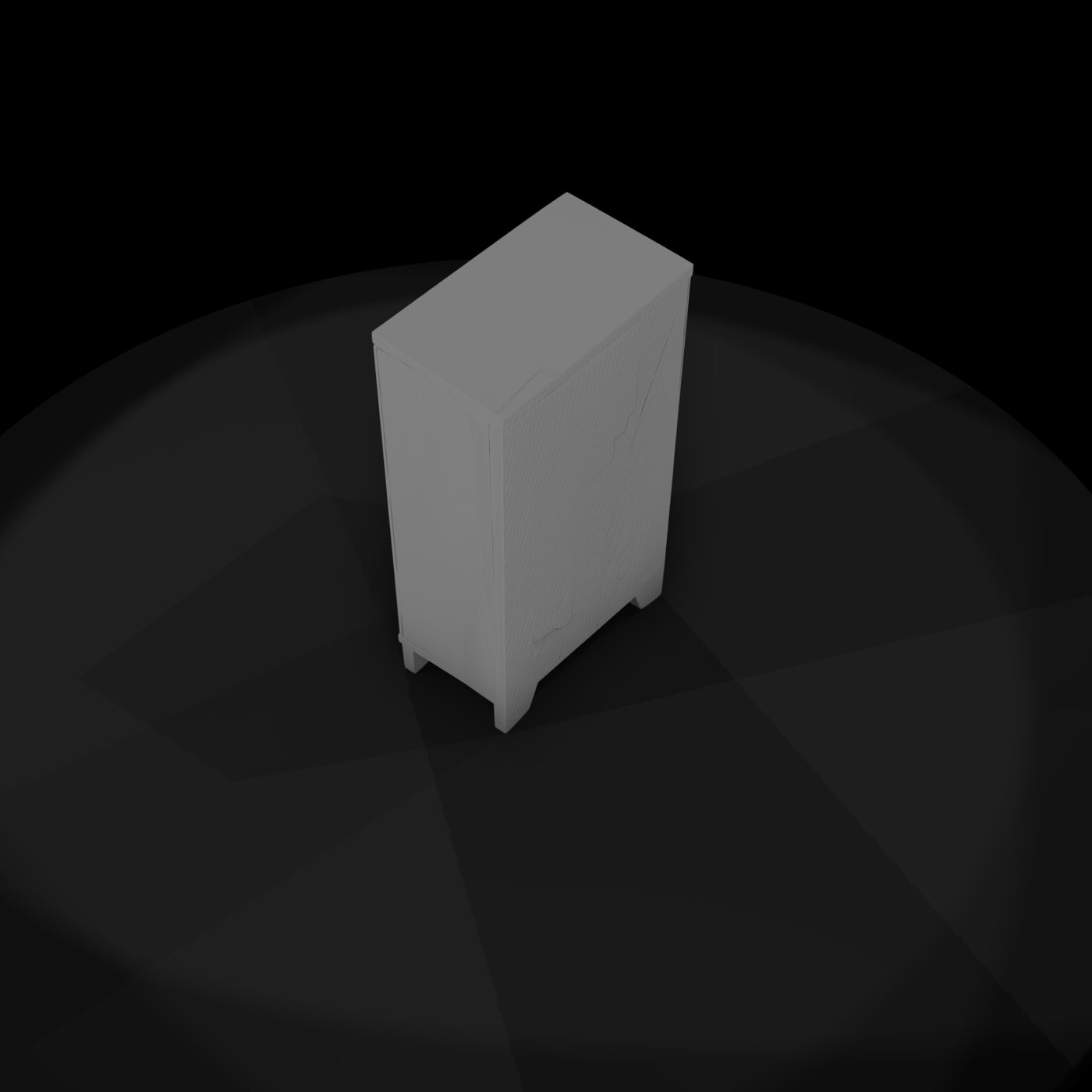

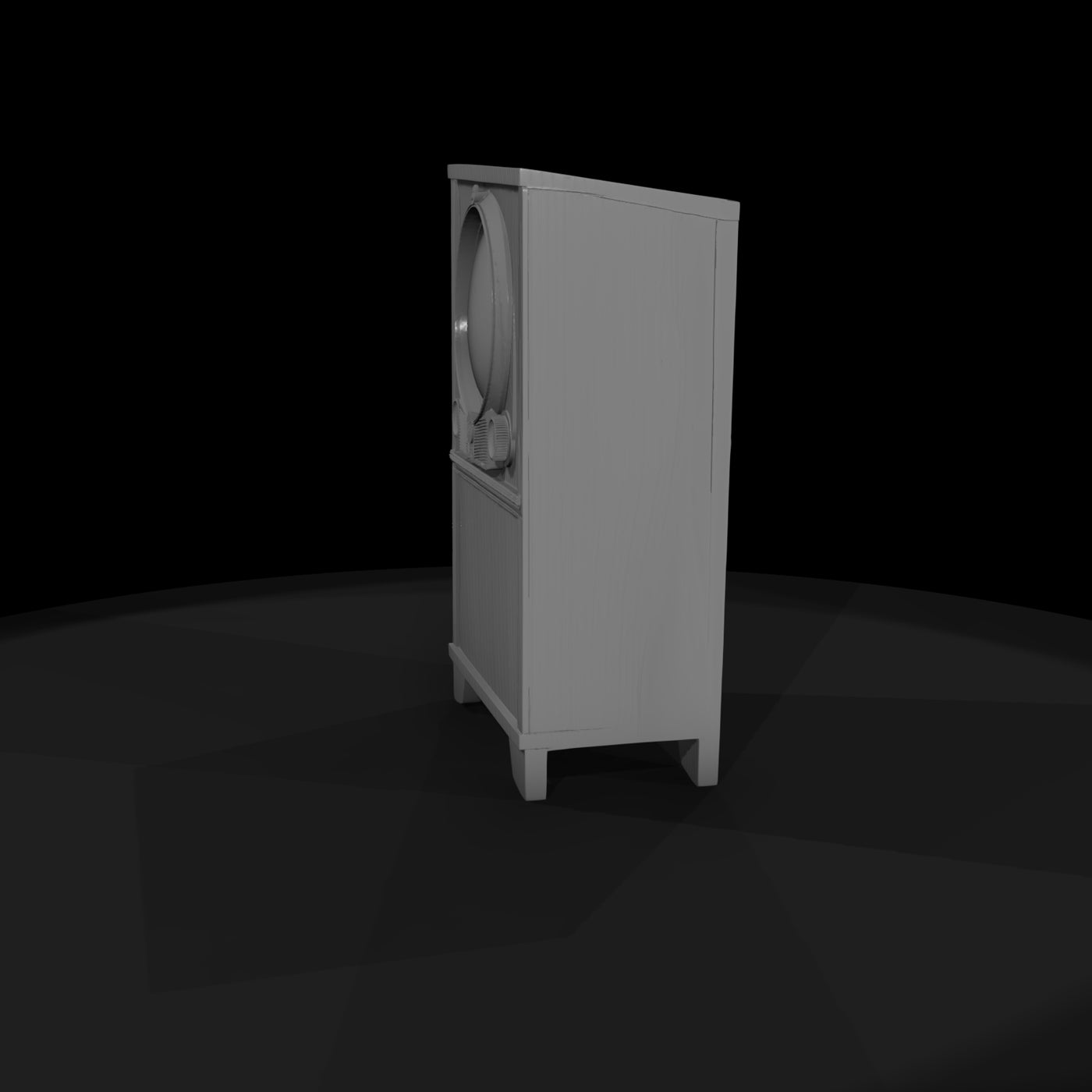

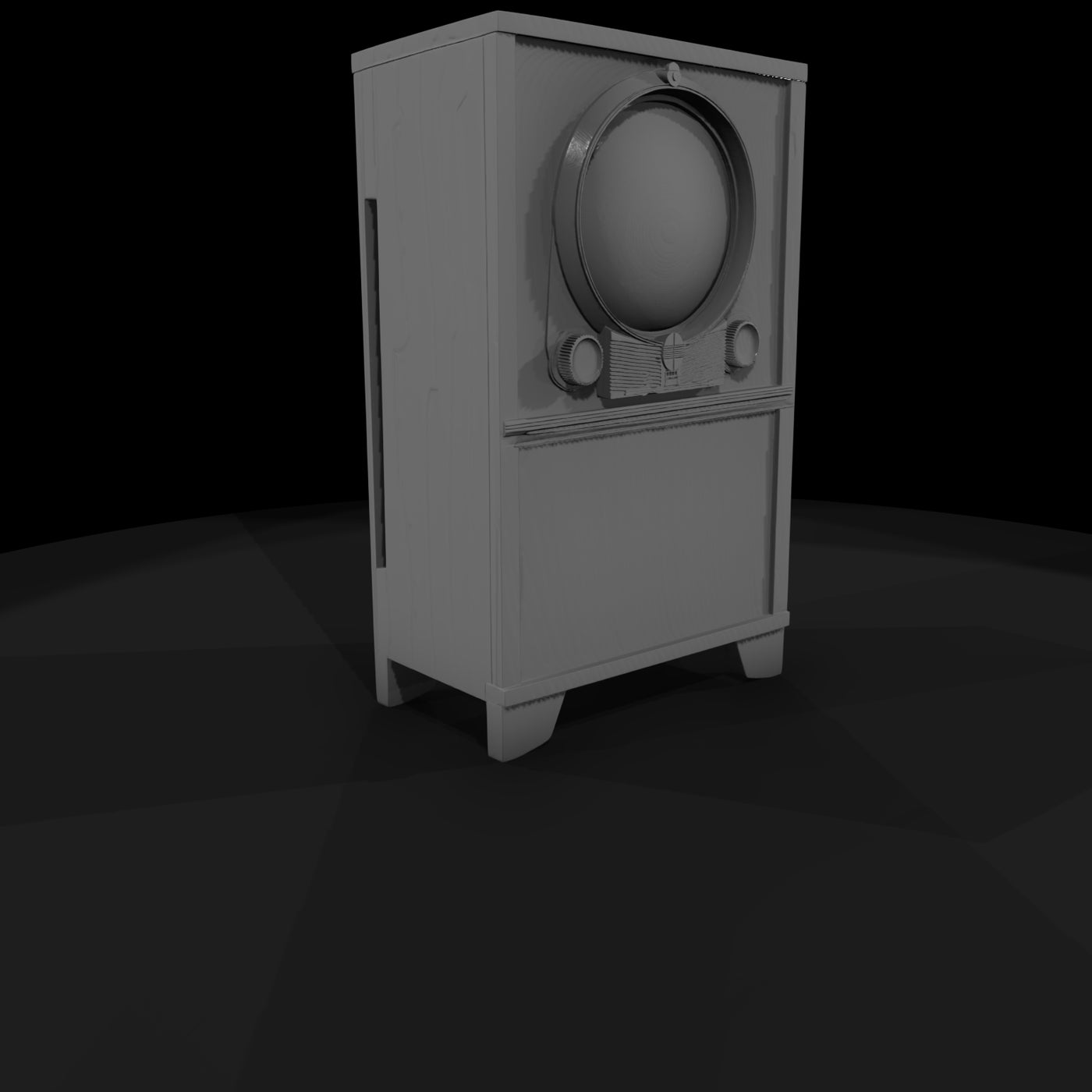

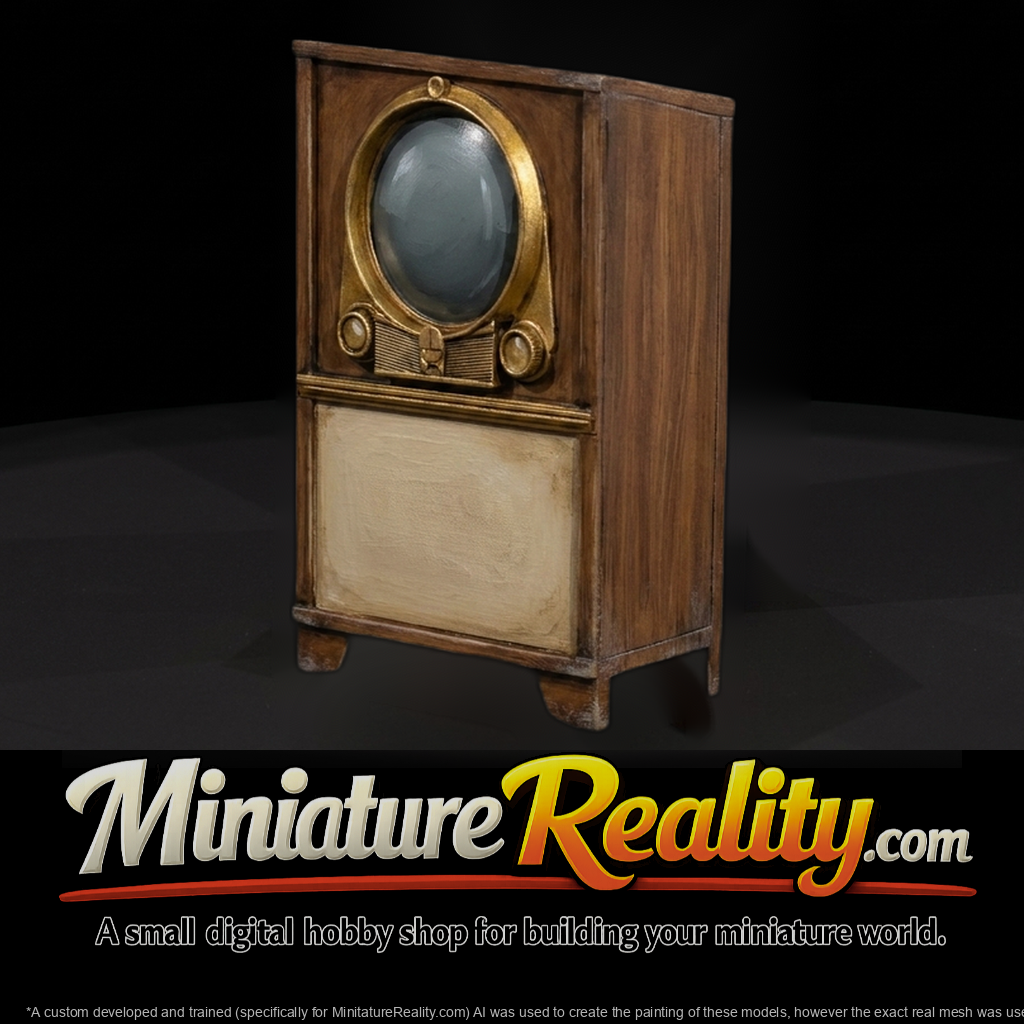

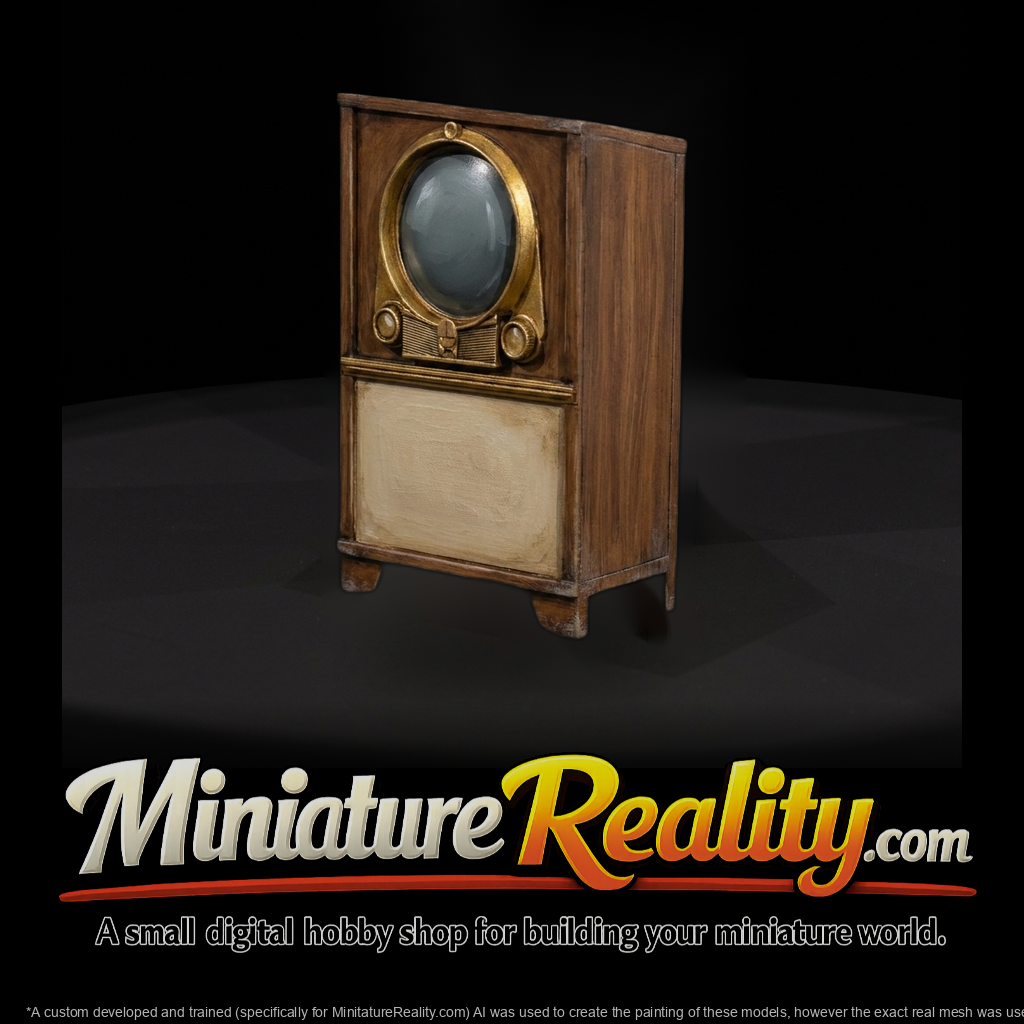

This piece reproduces the distinctive silhouette and readable small-scale cues of a mid‑century floor‑standing television console common to 1950s–1960s interiors. The overall profile is an elongated, low cabinet with a recessed, rounded TV aperture sized to suggest the era's curved cathode‑ray-tube displays rather than a modern flat screen. The front surface uses subtle panel separations and shallow textured speaker/grille panels sized to register reliably at HO (1:87) output without relying on fragile perforations.
Design details and intent
- Silhouette: elongated rectangular cabinet with a shallow front recession that forms the TV bay and a usable flat top surface suitable for small accessories (lamp, vase, miniature radio) to help ground interior vignettes. Proportions emphasize a recognizable period look at hobby scales.
- TV bay: smoothly curved inner lip and rounded aperture tuned so the CRT suggestion remains visible when scaled to HO. The recess depth and lip radius balance readability against unsupported overhangs when printed.
- Speaker/grille: represented as low‑relief textured panels rather than discrete holes to preserve the period appearance while avoiding fragile mesh at small scales.
- Legs: tapered and slightly splayed legs lift the cabinet to create a shadow gap beneath the body — a hallmark of midcentury furniture. Leg stems are sized for robustness at hobby scales but can be reinforced by users if heavy handling is expected.
- Paneling: subtle front separation lines and planed transitions provide visual interest without busy microdetail that would vanish on small resin or fine FDM prints.
What you receive
- One watertight master file exported at 1:87 (HO) intended for hobbyist printing and scaling workflows. The file is supplied as a single printable body oriented upright to sit flush on a diorama base. No separate parts are included.
Printing and scaling notes
Miniature Reality ships a single master exported at 1:87 (HO). To print at a different scale, uniformly scale the file in your slicer or editor by the ratio target_scale_denominator/87 (for example, to print at 1:48, multiply the model by 87/48 ≈ 1.8125). After scaling, check minimum feature thicknesses — particularly the tapered leg stems and the thin top lip — and thicken these areas in your modeling tool or slicer if needed. Recommended methods: resin printing for best edge fidelity; fine‑layer FDM (0.05–0.12 mm layer height) can also work with careful support placement. If printing as a single body, consider light supports under the recessed TV bay overhang; alternatively split the mesh into base and body in a mesh editor for easier printing.
Use cases
Ideal as a living room anchor for mid‑century interior vignettes, an interior detail for HO scale railroad layouts, a photography prop for scene or product shots, or a tabletop gaming piece to suggest period interiors. At 1:87 the console prints as a handheld interior element that accepts small accessories on its top surface.
Tips for modders and heavy use
- The model is supplied as a single body to sit cleanly on a base; split along recessed seams if you prefer separate components (legs, shell, interior).
- For heavy handling, consider reinforcing leg stems by adding small internal fillets or booleaned blocks before printing.
- Verify surface normals and repair with your preferred mesh tool after scaling; the file is watertight but may be decimated for very large prints.
Limitations and provenance
This is a generic mid‑century furniture piece designed to capture period silhouette and readable cues rather than to reproduce any particular manufacturer's product. Where legacy source data lacked maker‑specific markings, broadly period‑accurate geometry was used. The grille is a shallow texture to ensure consistent printability at HO. If you require a maker‑accurate copy, request manual review and provide reference photos and marque information.
Miniature Reality Personal-Use License (No AI / No Resale)
- Allowed: personal printing for your own layouts, dioramas, tabletop games, and personal display.
- Not allowed: sharing or distributing the digital files (free or paid), re-uploading to any site, bundling, remix resale, or selling/redistributing printed outputs.
- Not allowed: using the files (or derivatives) to train, fine-tune, test, or feed any AI/ML system (including dataset creation).
- Not allowed: commercial use of any kind without a separate written commercial license from Miniature Reality.
- Note: digital files may include purchaser-linked identifiers / forensic watermarking to help investigate unauthorized distribution.
