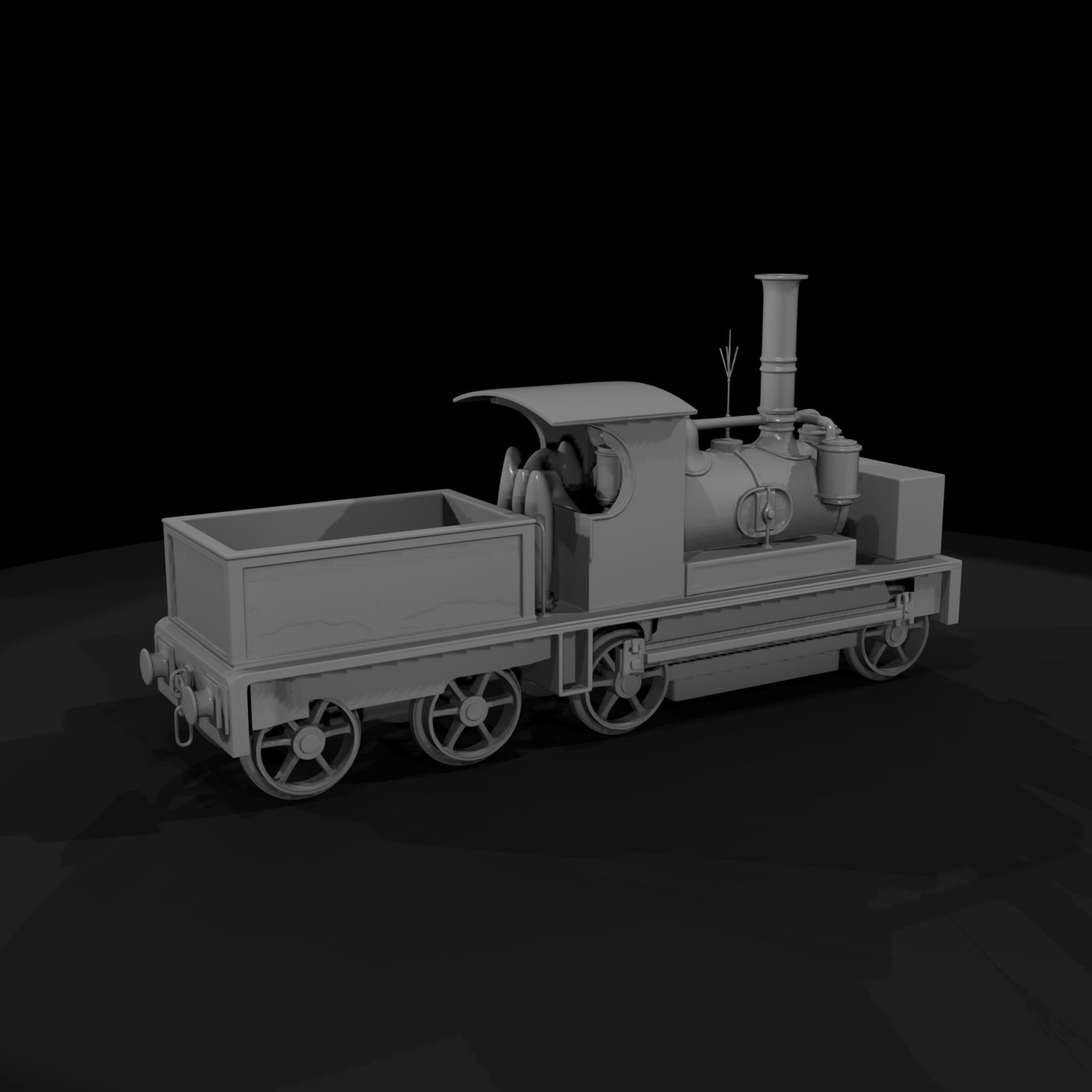

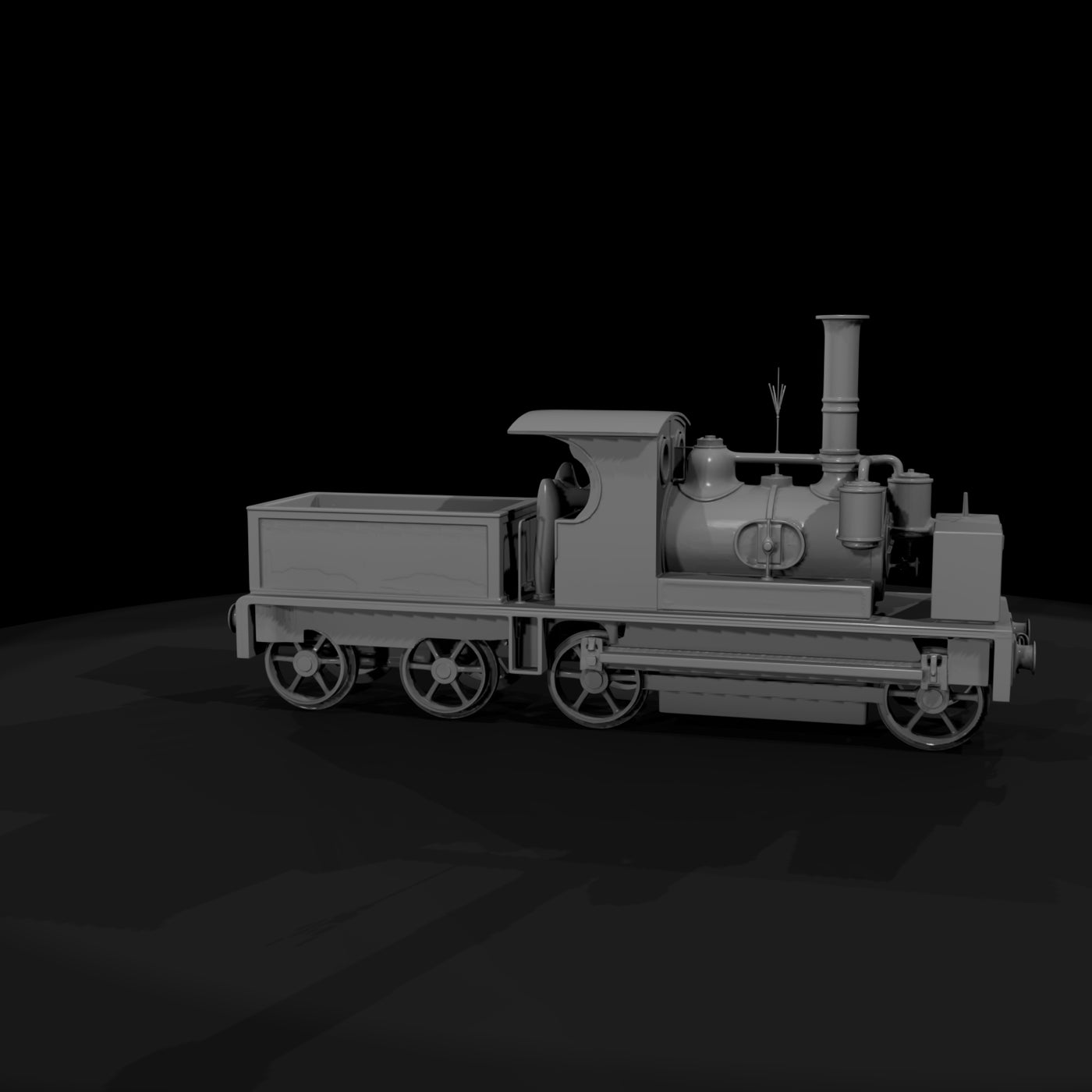

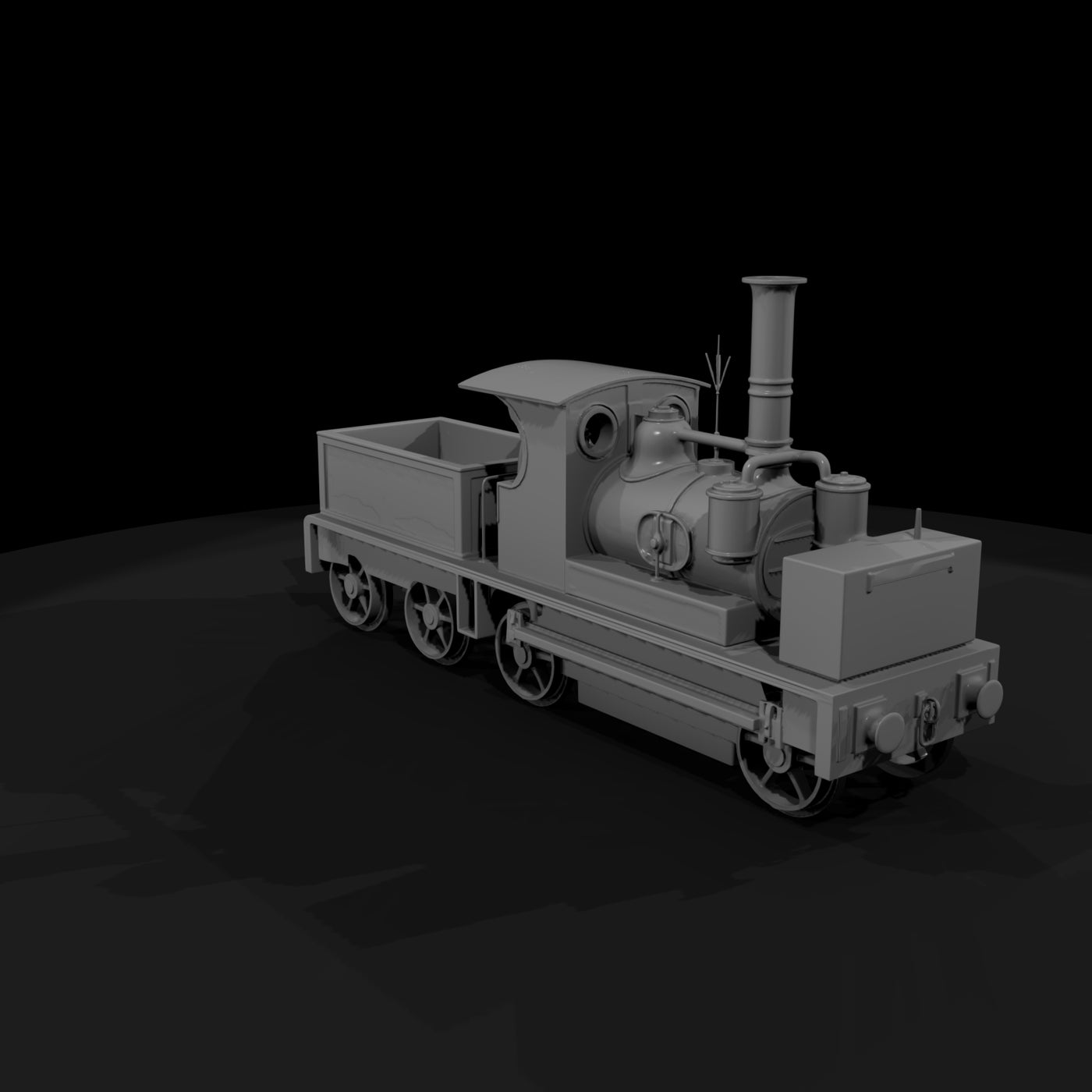

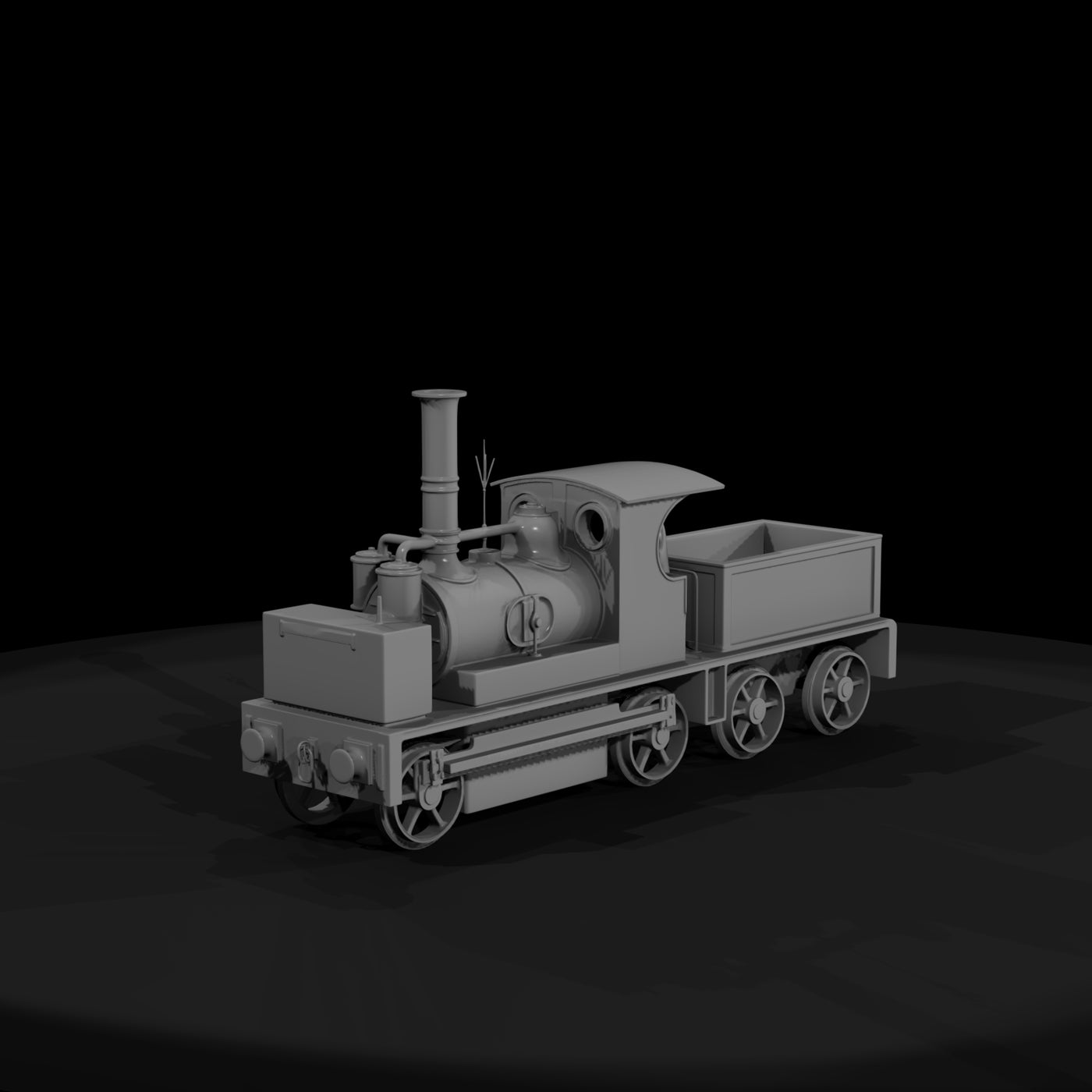

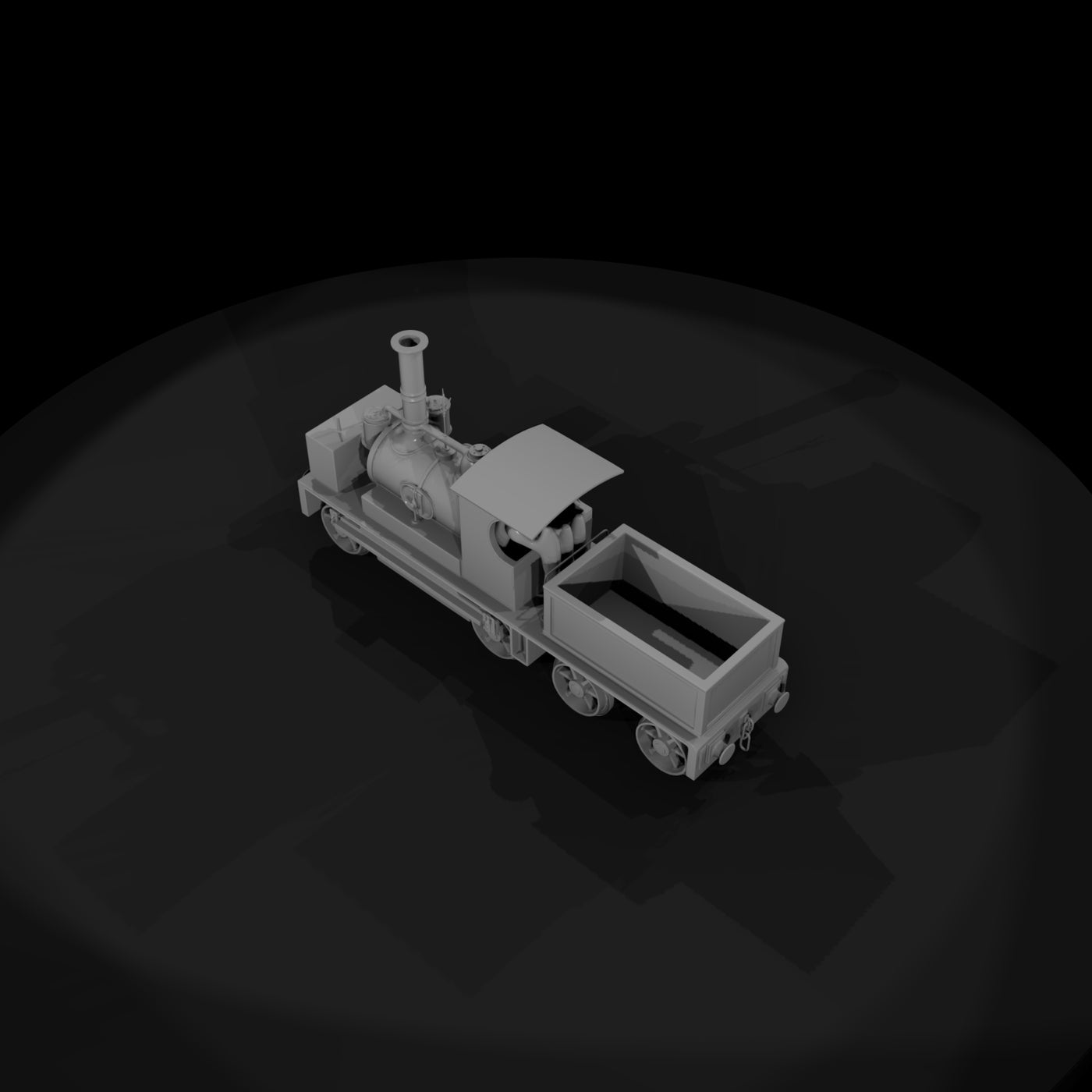

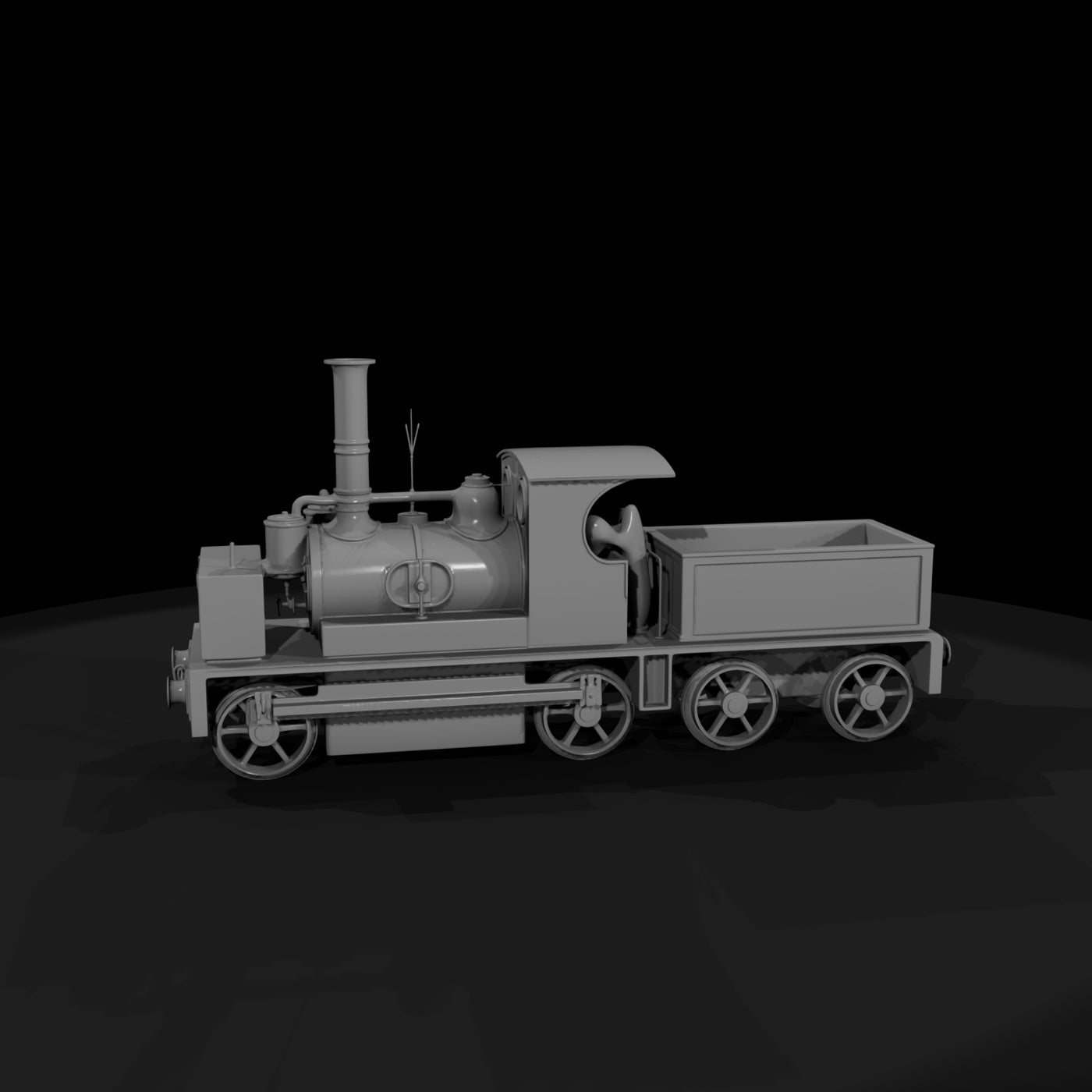

This stylized vintage steam locomotive is a scenic-focused sculpt designed and delivered as a single HO (1:87) master file for hobbyists who need a compact, instantly readable steam-era focal point. The intent of the sculpt is silhouette clarity and robust small-scale printing rather than prototype-accurate mechanical detail. Visible volumes are emphasized: a gently rounded cylindrical boiler with a simplified smokebox nose, an elevated vertical smokestack, two rounded dome crowns on the boiler, a recessed cab with simplified window openings and a shallow cab eave, pronounced rounded wheel arches, and an integrated short bunkered rear section rather than a separate tender.
What you receive
- One locked HO (1:87) master file prepared as a single static locomotive shell. This download contains one scenic shell only; no separate tender, functioning valve gear, or running assemblies are included. The mesh is arranged for scenic placement and readability on layouts and diorama bases.
Sculpt and visible features
The sculpt deliberately reads as a small steam tank locomotive without matching any single prototype. Key readable identifiers amplified for HO-scale legibility are the boiler cylinder and rounded smokebox, the tall vertical smokestack, the pair of dome forms, recessed cab openings that suggest crew space without detailed interior, and wide, rounded wheel arches. The running gear has been interpreted as broader ribbons and simplified plates rather than thin rods and fine rods, specifically to avoid fragile thin elements at small scales and to keep silhouette and motion lines clear from typical layout viewing distances. The bunker/coal space is modeled as an integrated short rear coal well rather than a separate tender so the piece works as a compact scenic unit on short sidings or photographic vignettes.
Intended uses
This sculpt excels as a static scenic locomotive on HO model-railroad layouts, small yard scenes, industrial sidings, photographic vignette compositions, and standalone diorama display plinths. It is intended for static scenic use—if you require operational coupling, functioning running gear, or a separate tender, use this sculpt as a scenic donor or commission a running-capable conversion.
Scale and rescaling guidance
The product is prepared at a locked 1:87 (HO) master scale. If you wish to print at another scale, uniformly rescale the mesh in your workflow tool using the ratio between 87 and the target scale denominator (for example, to 1:76 use approximately 114.5% scaling, to 1:48 use approximately 181.25%). Always verify final mesh dimensions after rescaling and check critical clearances. Because the sculpt was composed for HO readability, very small scales (N 1:160) will reduce surface nuance and very large scales will expose simplified geometry intended for silhouette rather than close-up prototype fidelity.
Printing notes and preservation of detail
The geometry favors broad readable volumes and thicker interpretive running gear to survive small-scale printing and handling. For fine surface treatment, use modest layer heights on domes and boiler surfaces to preserve curvature transitions. Support placement should be conservative under the smokestack, cab eaves, and underside of the pilot to avoid excessive contact marks on curved surfaces. If you separate the mesh for multi-part printing, consider splitting along natural seams (underside or base) to ease support removal. When scaling up, inspect narrower rims and thin accents and consider local thickening for structural strength.
Integration and mounting
The single-piece shell and simplified underside make the locomotive easy to mount to scenic track beds, ballast sections, or display plates. For layout installation, glue the printed locomotive to a short scenic turnout section, a pre-ballasted track riser, or a mounting pad. The simplified underside also simplifies adding screw bosses or small mounting pads for secure attachment.
Limitations and usage notes
This is a stylized scenic locomotive and not a precise historical replica of any single prototype. The sculpt was created to read well in small scales and trade mechanical fidelity for silhouette clarity. The download contains a single locked HO master file; conversion instructions are provided above for printing at other scales. For running-capable conversions, separate couplers, or tendered rigs, consider commissioning a dedicated operational model.
Licensing
Personal hobby use, printing for private display, and inclusion in your personal layout are permitted. Redistribution of the master file or commercial resale of printed copies is not allowed without explicit permission. If you require alternate file arrangements, split assemblies, or a tendered version, commission a custom modeling service.
Checklist before printing or distribution
- Confirm final mesh dimensions in your workflow tool after any rescale
- Test-print a small section (smokestack and cab area) at the target scale to verify detail fidelity
- Use conservative supports under the smokestack and cab eaves to preserve curved surfaces
- Consider adding a small mounting pad under the boiler for secure layout placement
This file ships as a single HO (1:87) master prepared for scenic readability, painting, weathering, and integration into dioramas and model-railroad layouts.
Miniature Reality Personal-Use License (No AI / No Resale)
- Allowed: personal printing for your own layouts, dioramas, tabletop games, and personal display.
- Not allowed: sharing or distributing the digital files (free or paid), re-uploading to any site, bundling, remix resale, or selling/redistributing printed outputs.
- Not allowed: using the files (or derivatives) to train, fine-tune, test, or feed any AI/ML system (including dataset creation).
- Not allowed: commercial use of any kind without a separate written commercial license from Miniature Reality.
- Note: digital files may include purchaser-linked identifiers / forensic watermarking to help investigate unauthorized distribution.
