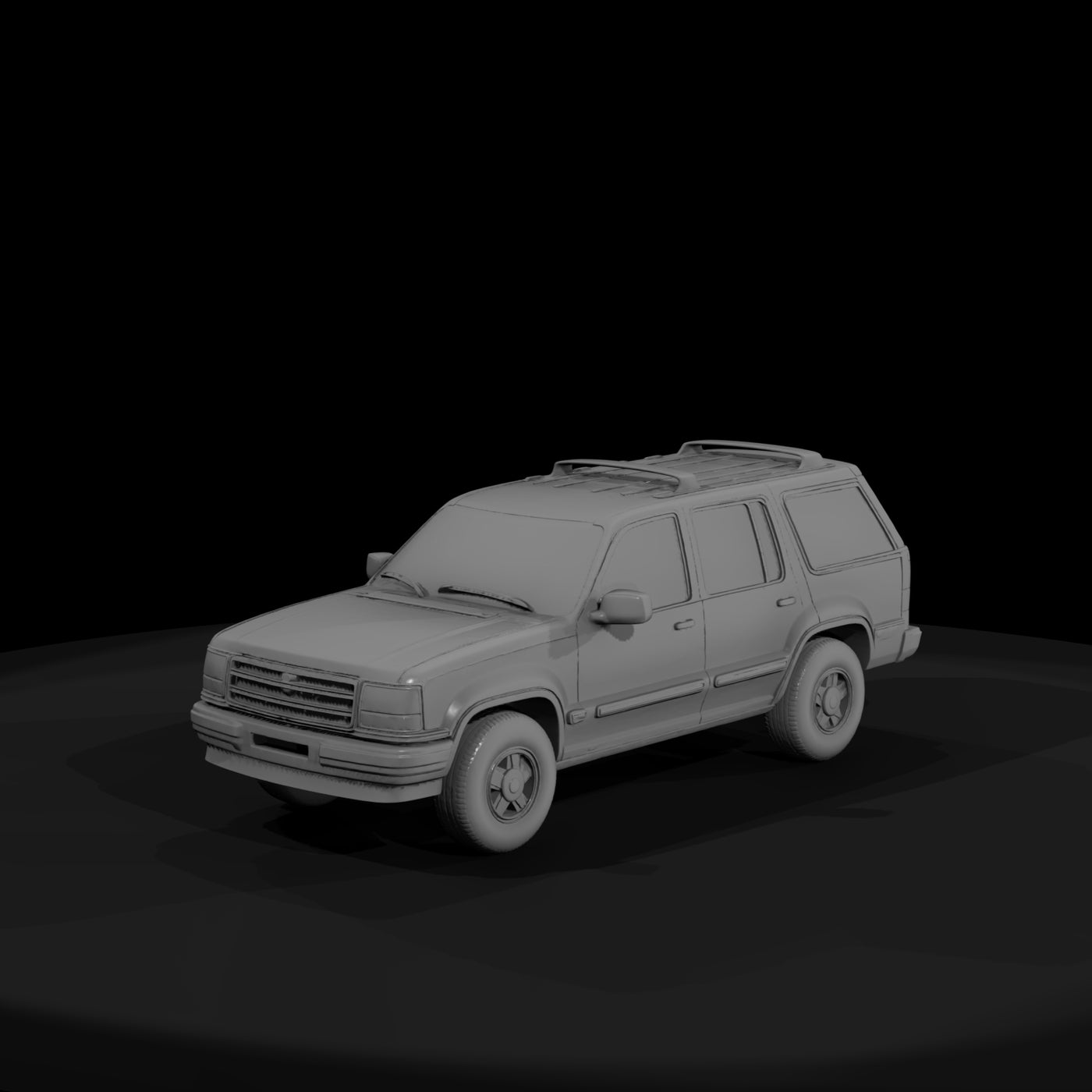

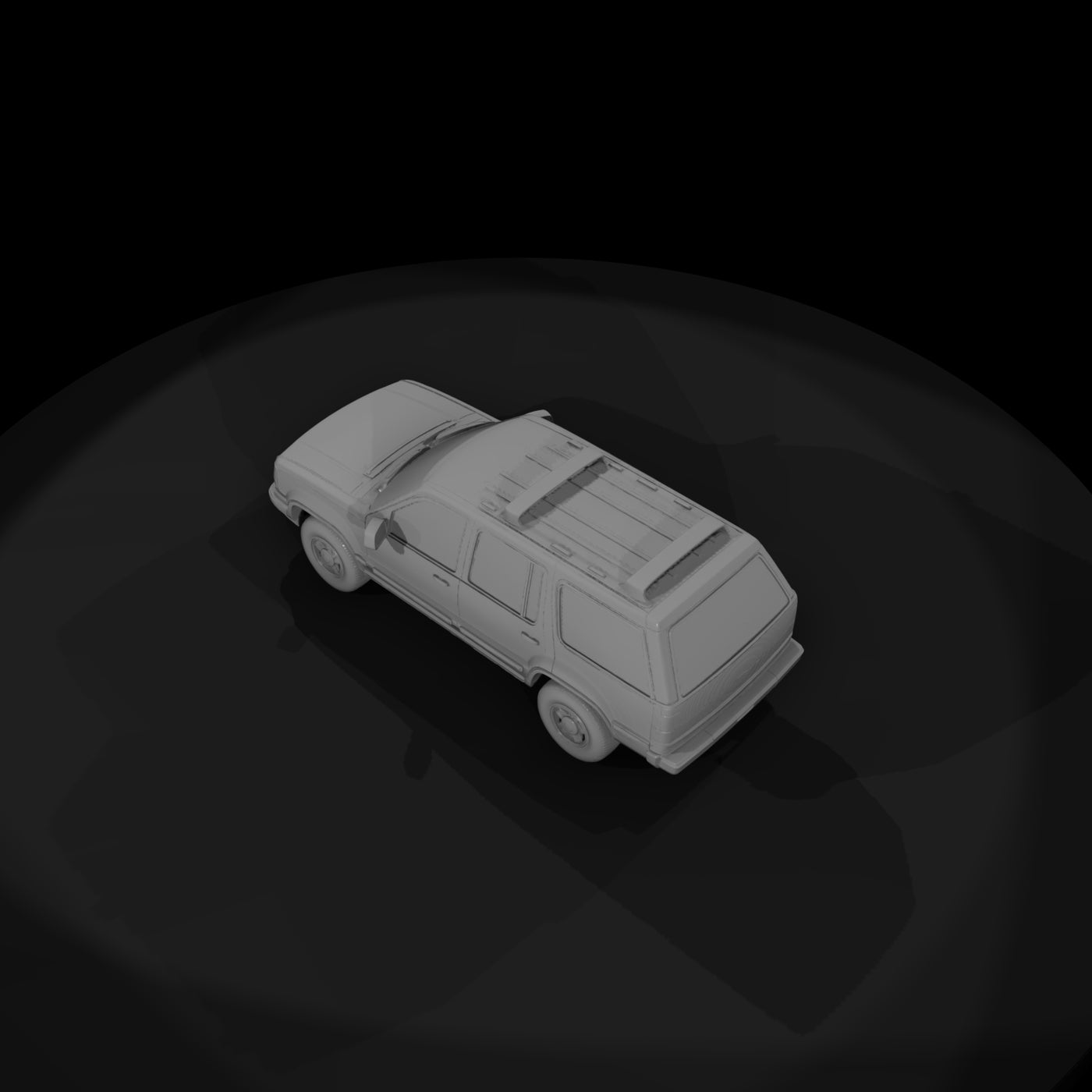

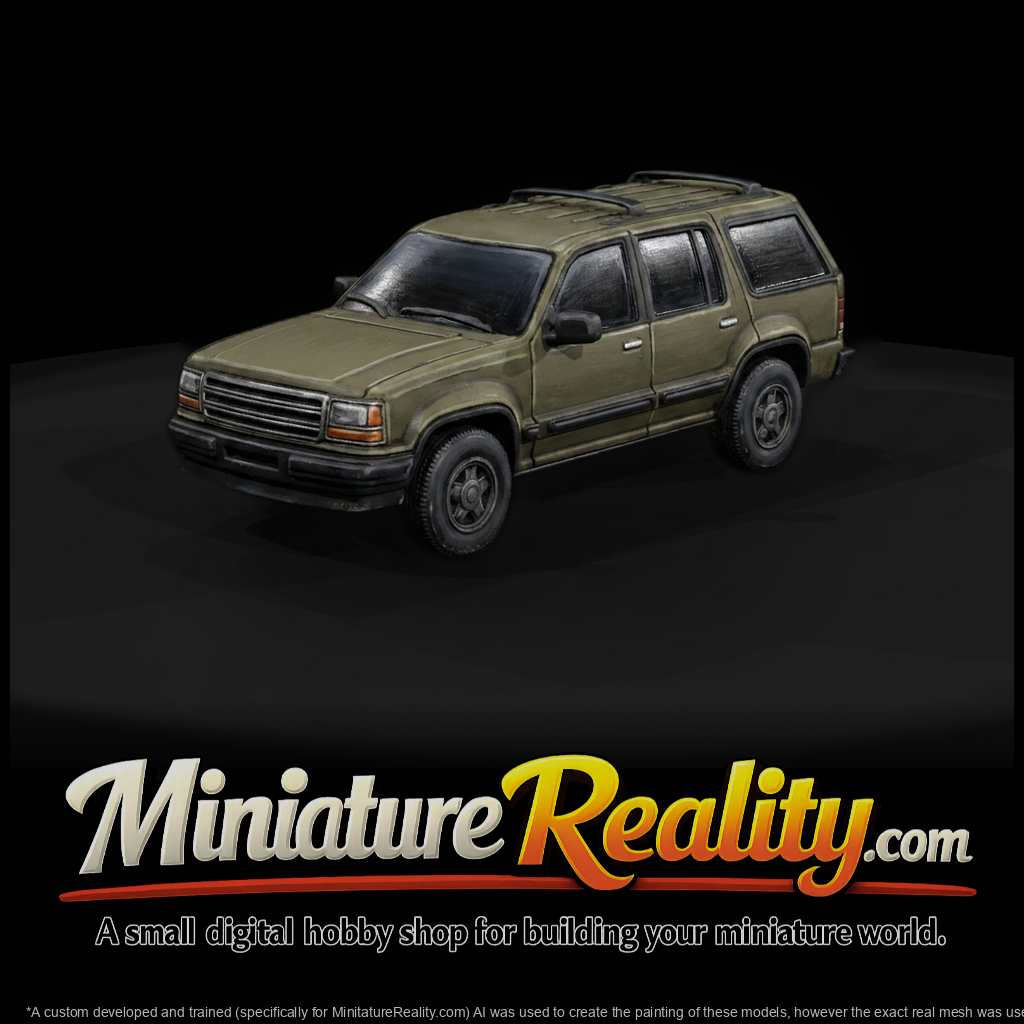

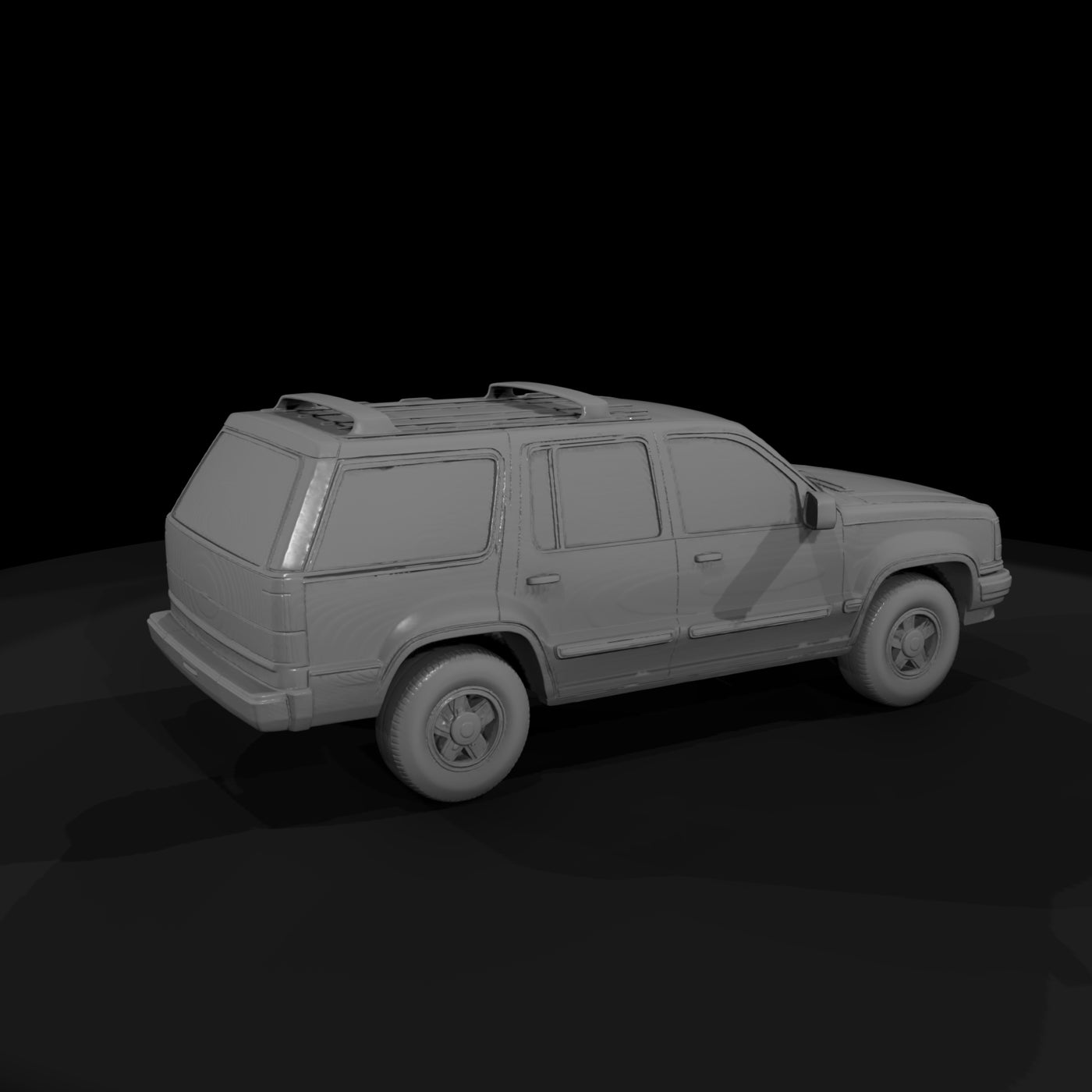

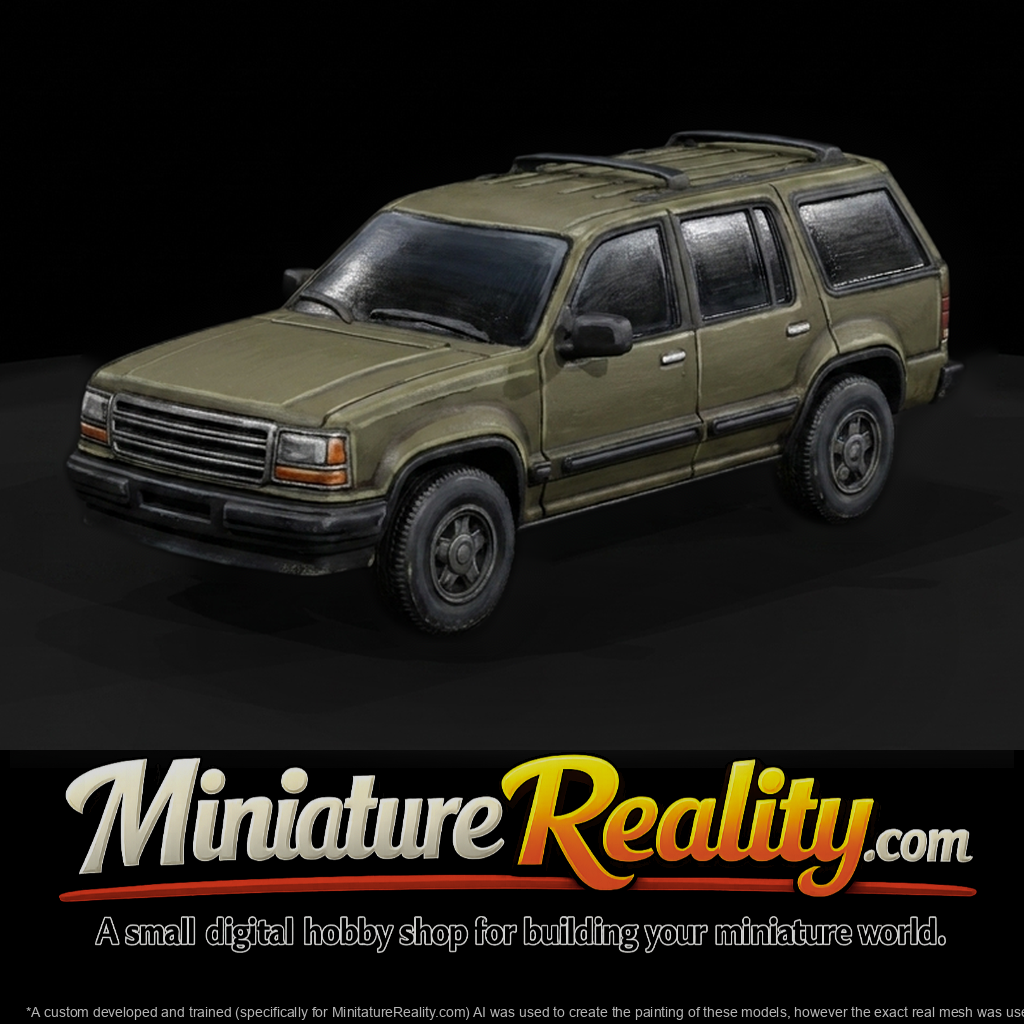

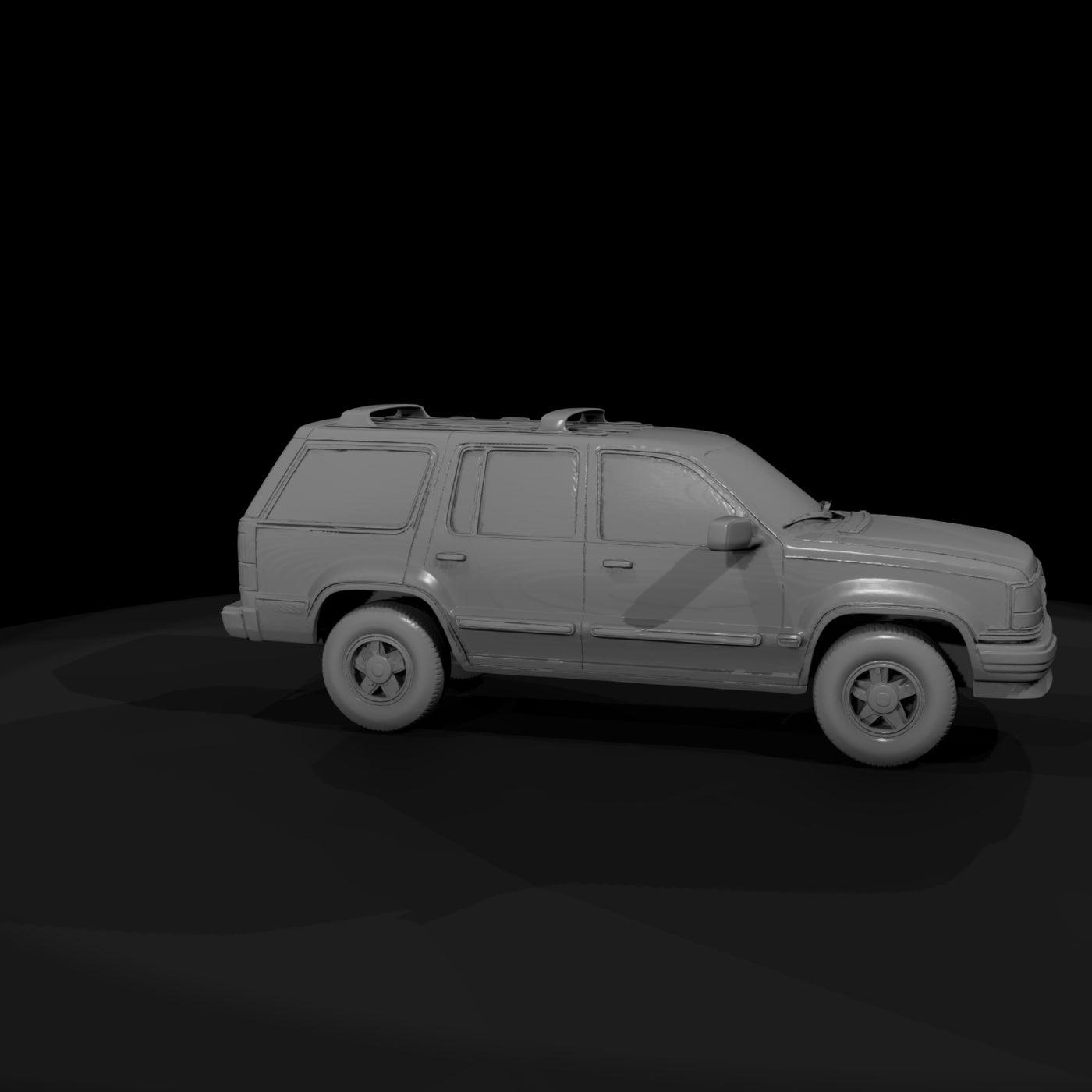

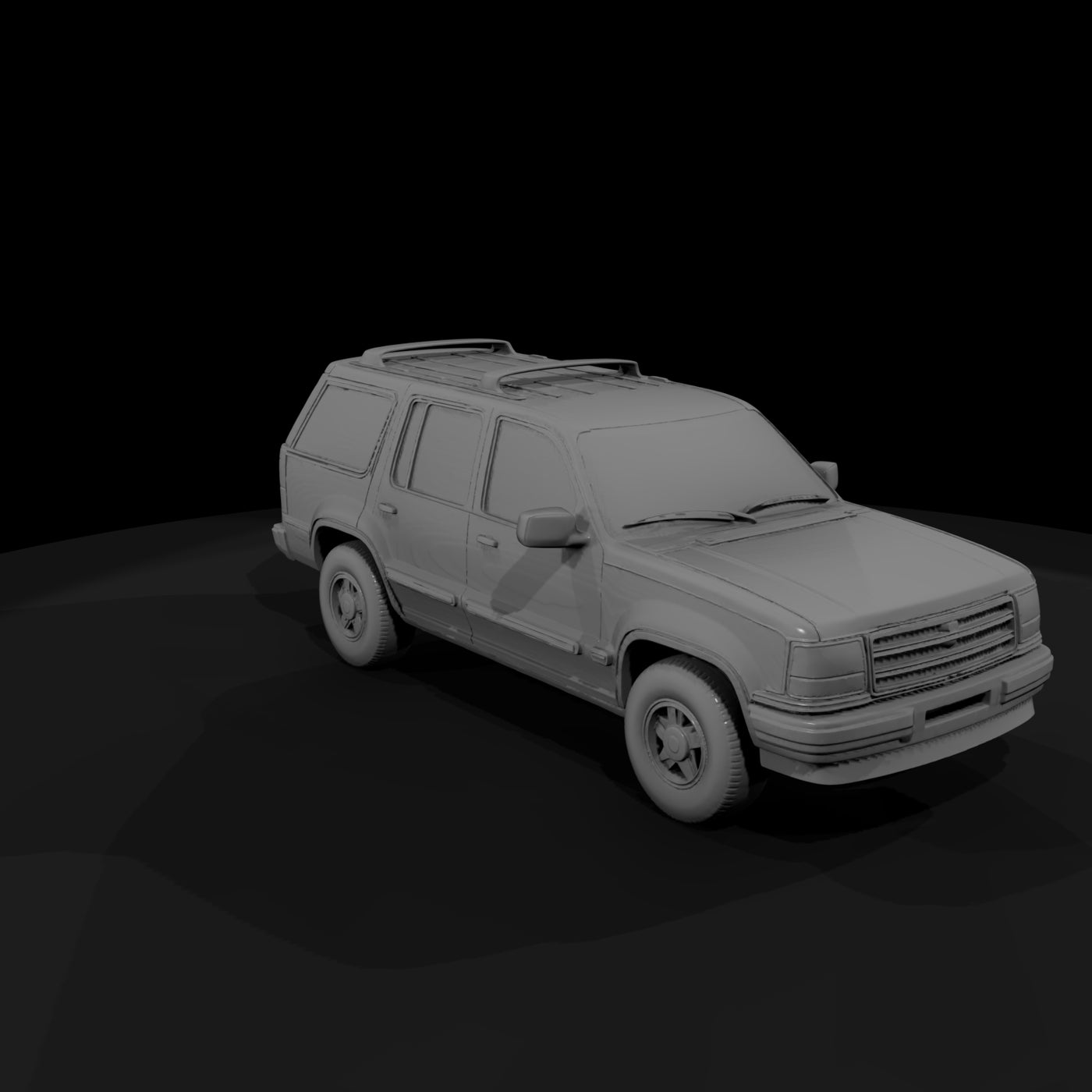

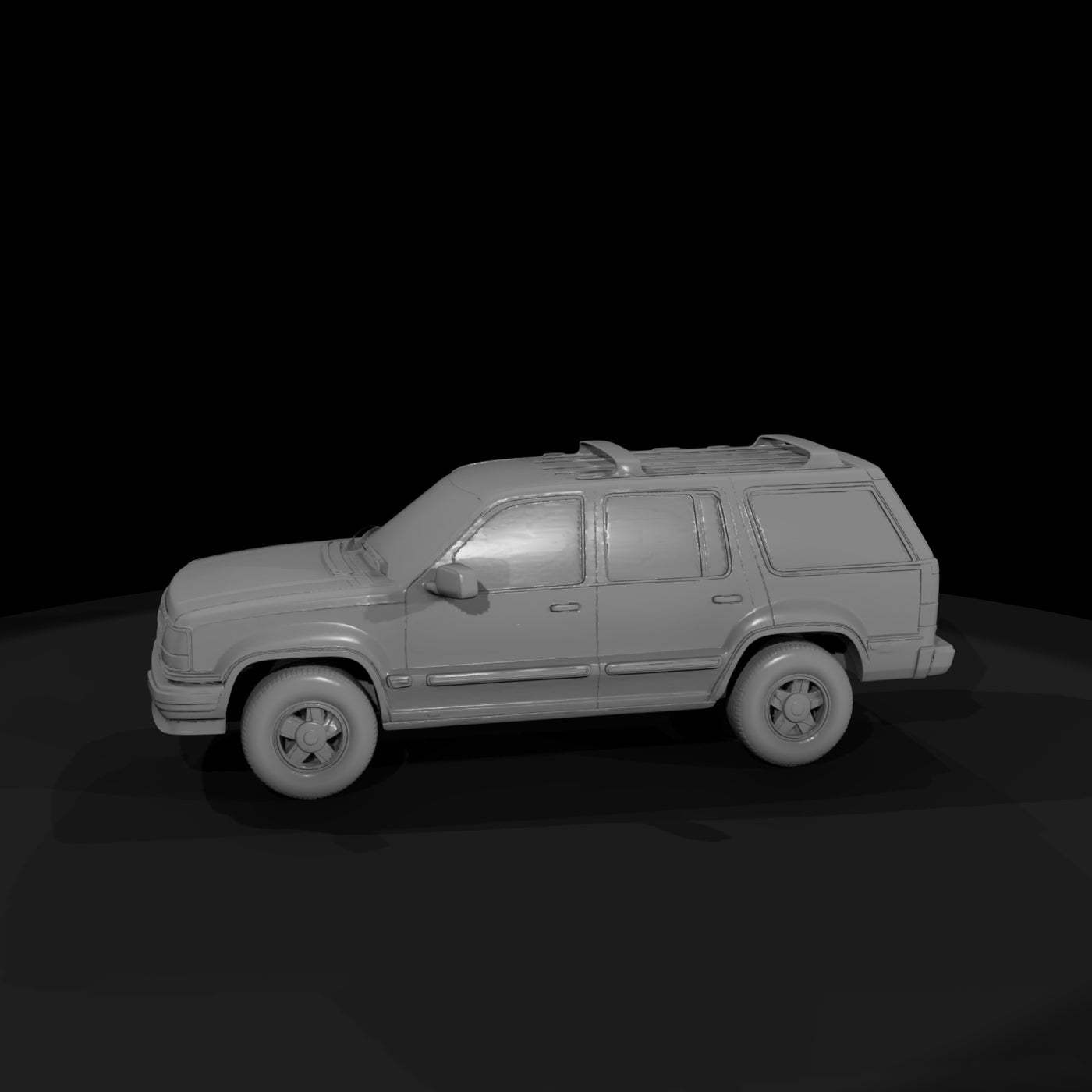

This product delivers a single 1:87 (HO) master STL of an unbranded vintage four-door sport utility vehicle sculpted as a hobby-friendly base mesh. The sculpt favors a clear, readable silhouette at small scales: a compact, slightly boxy body profile with an upright windshield, broad roofline with low roof racks, shallow door panel lines intended to read under paint rather than deep cut geometry, and simplified slab bumpers integrated into the body mass to reduce fragile appendages. Window openings are largely closed or shallow to avoid unsupported spans at HO scale, and trim details have been intentionally simplified to keep the shell robust when printed small.
What you receive: a single 1:87 (HO) master STL file scaled to HO. This is the only delivered STL; included product notes explain how to scale the 1:87 master to other hobby scales in your slicer (example conversion ratios and a reminder to check bounding-box dimensions after scaling). We do not provide multiple pre-scaled STLs. The mesh is supplied watertight and optimized for small-scale printing by favoring broad panel reliefs and avoiding thin, fragile appendages.
Design intent and visible features: the front fascia presents a horizontal slatted grille and rectangular headlamp pods typical of late twentieth-century utility vehicles but deliberately lacks manufacturer badges or maker marks to remain era-agnostic and kitbash-friendly. Door outlines are rendered as shallow depressions rather than full through-gaps, making them resilient during printing and simple to deepen or rework for custom conversions. Wheel wells are recessed and simplified so you can swap in aftermarket wheels or print separate wheel sets; this approach helps match era-appropriate tire width and rim style while keeping the main body compact and printable. Roof rails and a mild shoulder line provide visual interest when viewed from layout distances without creating fragile filigree.
Printing and finishing notes: orient the body resting on its wheels for the cleanest underside and least support contact, or tilt gently nose-up to reduce supports on the roof and preserve shallow panel lines. Use light supports under chassis rails and minimal supports at recessed wheel wells if printing wheels in place. Layer heights between 0.08 and 0.12 mm capture the shallow panel seams without producing excessive step artifact at HO. If you intend to scale the mesh significantly larger than HO (for example to 1:48), consider adding raised details—door handles, badge plates, sharper panel edges—before printing to match the expected visual language at the larger size. When scaling smaller (for example to 1:160), thin elements such as bumpers and shallow seams may require reinforcement or thickening to survive printing and handling.
Conversion guidance: this product ships as a single HO 1:87 master STL. To convert to another scale, scale the model in your slicer by the ratio (87 ÷ target denominator) — for example, to print at 1:48 multiply model dimensions by 87/48 (~1.81). Always verify the final bounding box in millimeters and inspect minimum feature sizes and wall thickness appropriate to your chosen printer and material.
Intended uses and kitbash guidance: the neutral, unbranded styling makes this vehicle a flexible prop for HO-era streetscapes, parking lots, service stations, suburban or rural scenes. It works as a kitbash starting point—shallow seams are easy to deepen or rework—and is suitable for practicing weathering and paint techniques where silhouette and readability from a short distance matter more than high-fidelity close-up detail. The simplified body also makes it useful as a filler car for layouts and dioramas where many vehicles are needed quickly without brand-specific licensing concerns.
Limitations and provenance: this asset originates from a legacy MeshRef stub and is intentionally a base mesh rather than a brand-accurate replica. Identity confidence in the source metadata is low; treat this as a generic vintage 4-door SUV rather than a historically exact make/model. If you require an accurate manufacturer match, finer surface detail, or addition of badges and trim, request a custom modeling commission.
License and usage: the STL is provided under Miniature Reality terms for personal and commercial hobby use. No manufacturer logos are present; avoid implying official association with real-world brands without permission.
Scale reminder: single master STL provided at 1:87 (HO). Conversion guidance included in product notes.
Miniature Reality Personal-Use License (No AI / No Resale)
- Allowed: personal printing for your own layouts, dioramas, tabletop games, and personal display.
- Not allowed: sharing or distributing the digital files (free or paid), re-uploading to any site, bundling, remix resale, or selling/redistributing printed outputs.
- Not allowed: using the files (or derivatives) to train, fine-tune, test, or feed any AI/ML system (including dataset creation).
- Not allowed: commercial use of any kind without a separate written commercial license from Miniature Reality.
- Note: digital files may include purchaser-linked identifiers / forensic watermarking to help investigate unauthorized distribution.
