What you receive: one HO 1:87 master STL containing a single-piece sculpt of a vintage cab-over (forward-control) semi tractor unit. This asset was created with readable, robust volumes so the truck reads well at small hobby scales while keeping clear mid-century era cues. The sculpt intentionally avoids brand-specific details and focuses on a generic visual language found in many 1950s–1960s forward-control tractors.

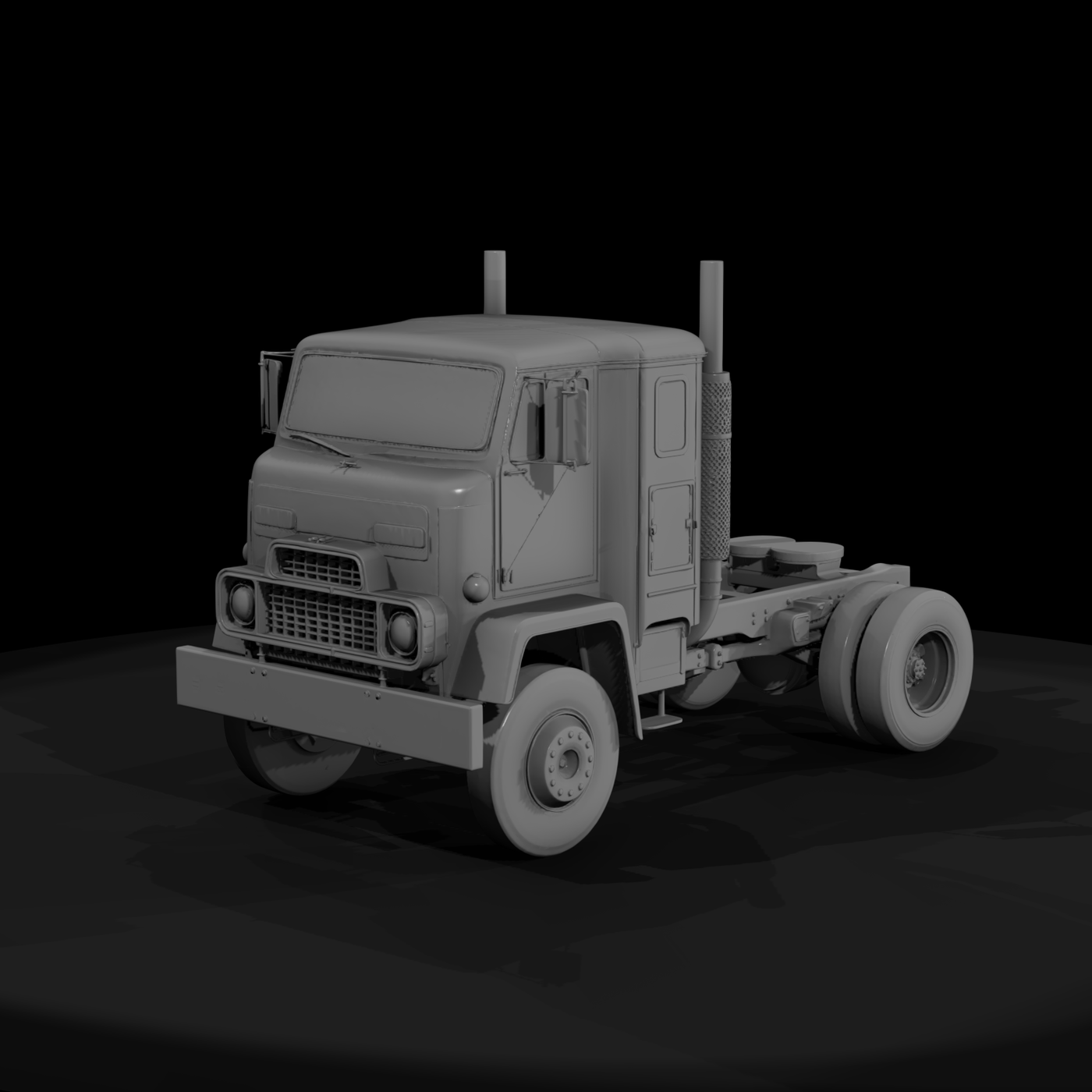

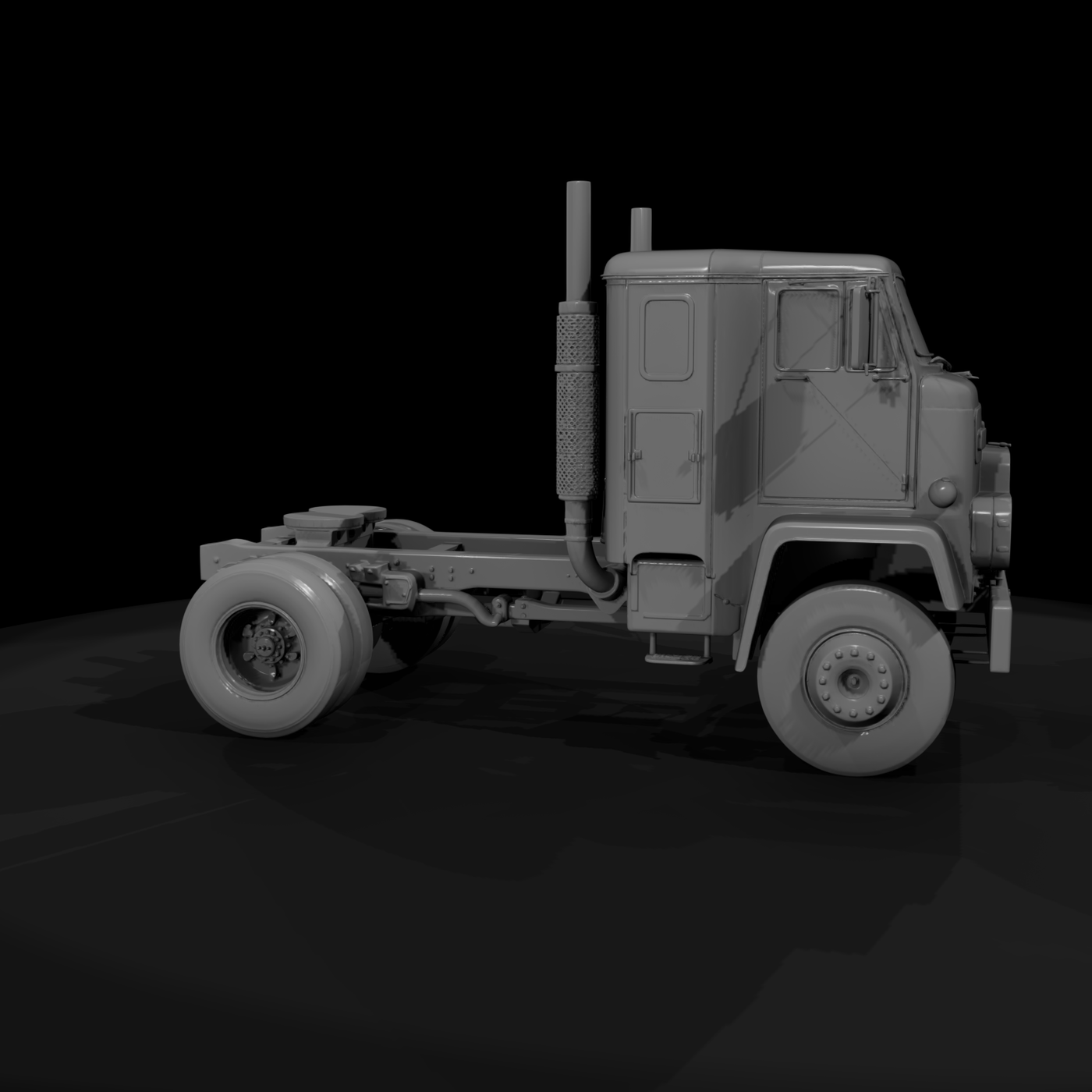

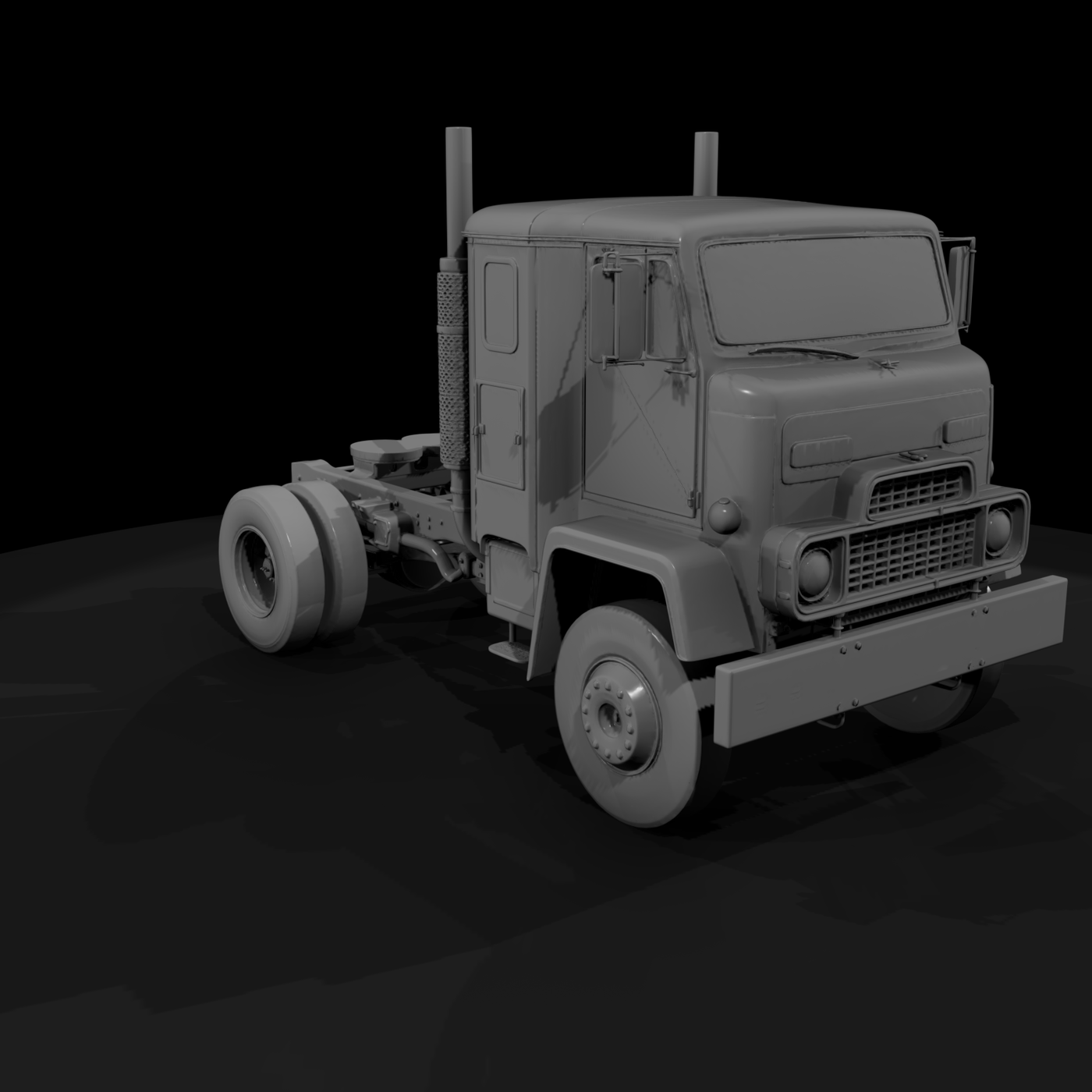

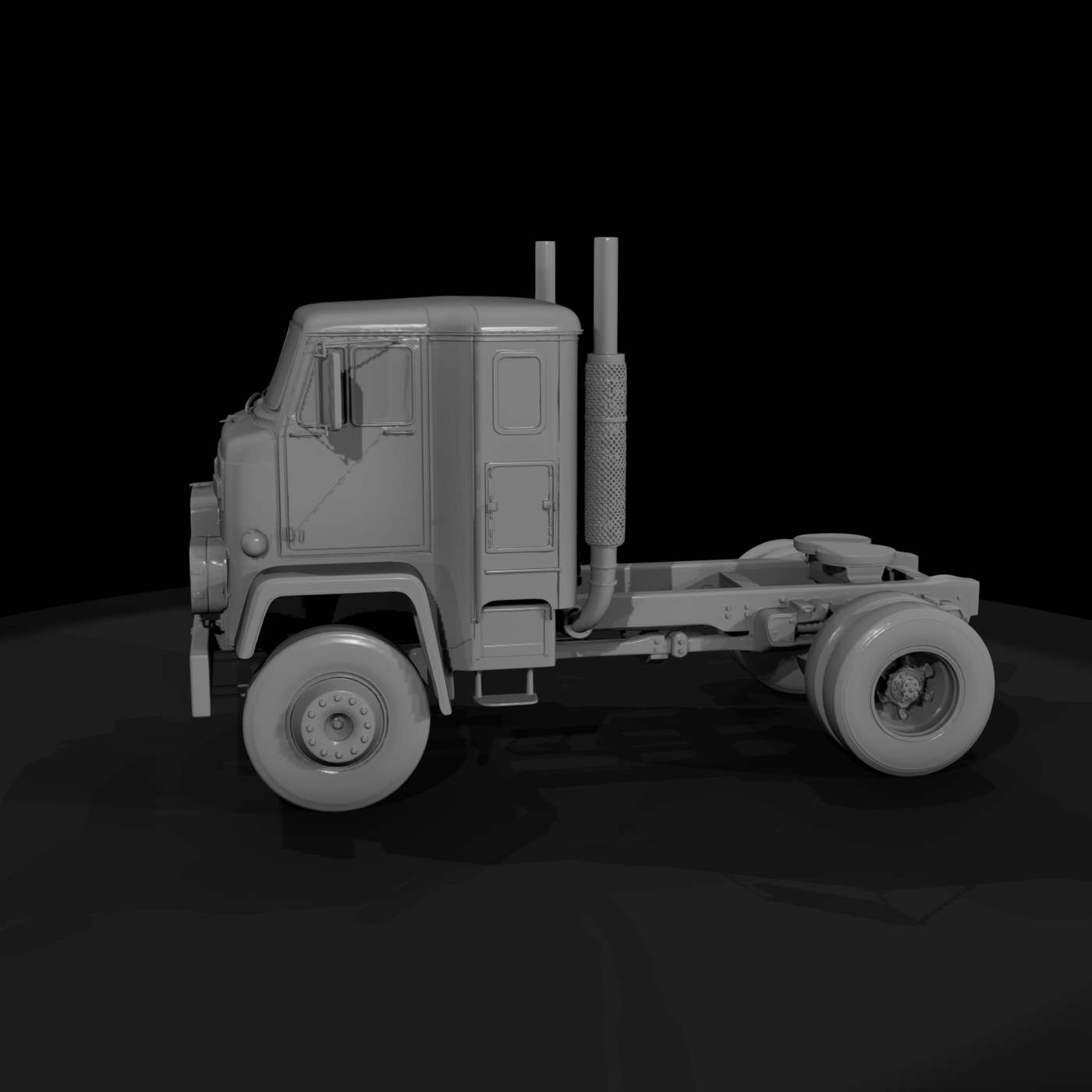

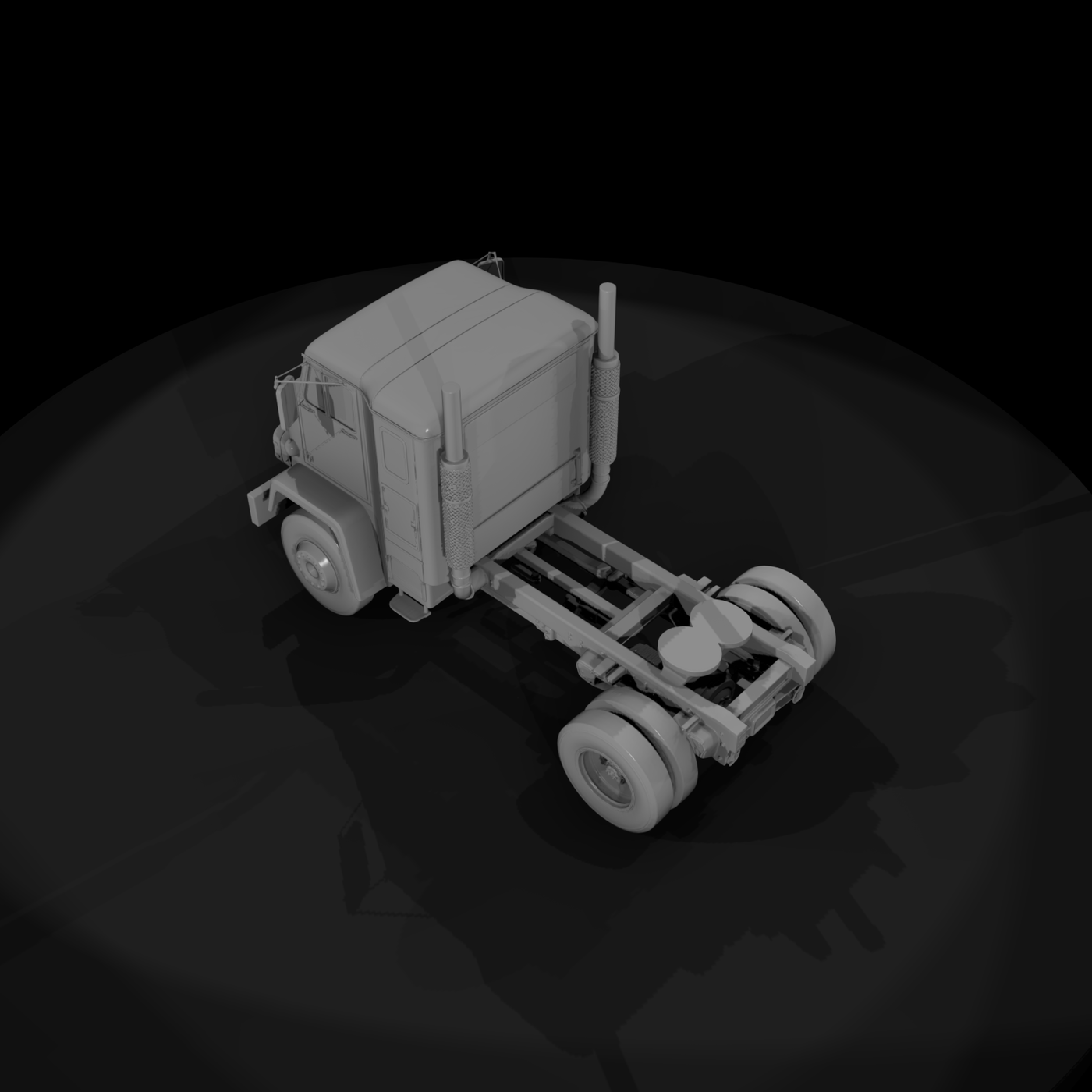

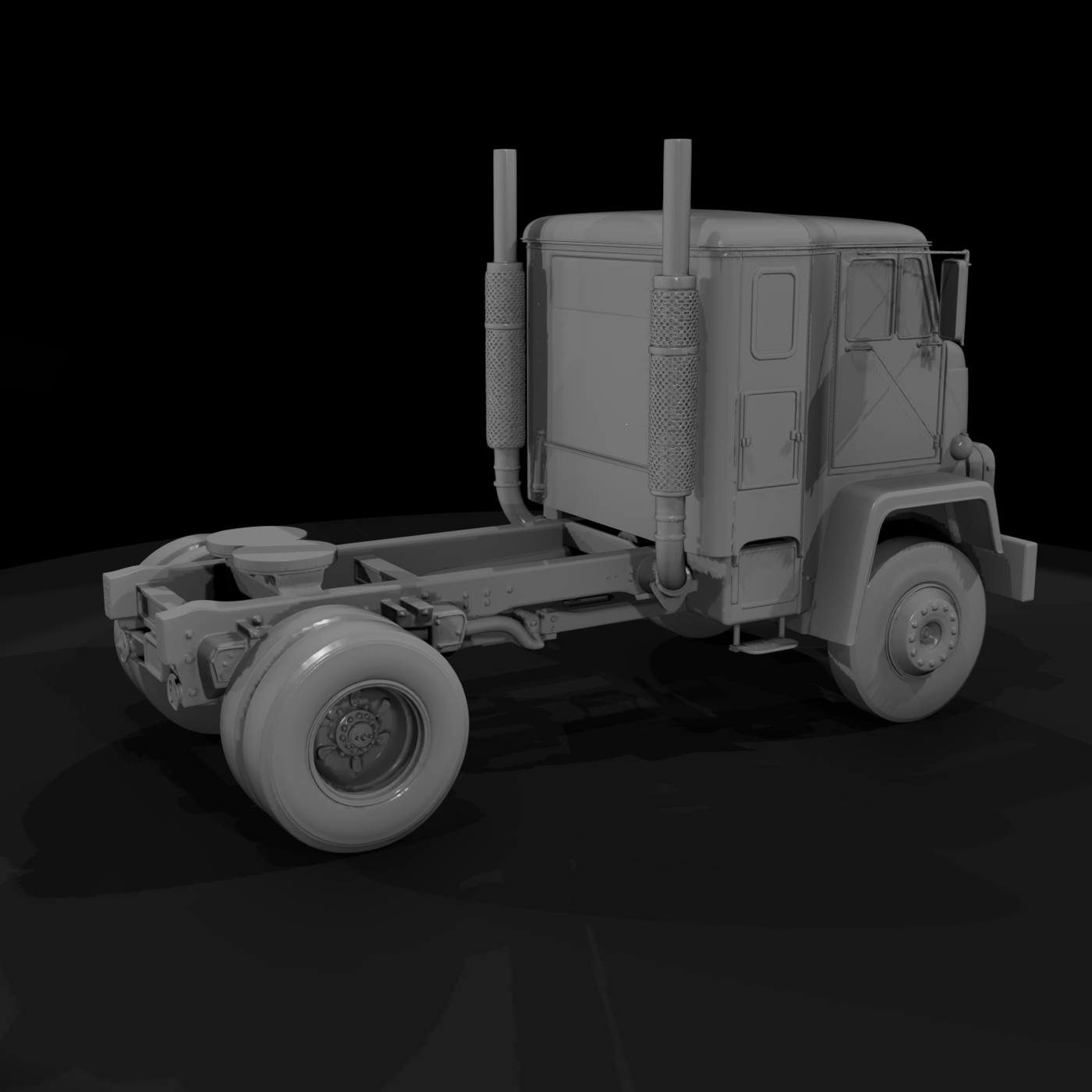

Visible features and sculpt intent: the defining silhouette is the forward-control cab with a short frontal profile and near-vertical cab face. The cab has a plain roofline, shallow recessed bonnet details, and reinforced door panel outlines. Wheel housings are slightly oversized and rounded to ensure presence at HO scale; the rear chassis carries twin rear-axle housings and compact suspension block forms that establish a believable stance. The grille and headlamp areas are modelled as shallow, reinforced recesses to print cleanly and accept weathering and detailing. Fragile appendages that would be problematic at small scales (thin mirror stalks, fine antennae, and narrow grille bars) are merged, thickened, or omitted by design. A minimal fifth-wheel cue on the chassis suggests trailer attachment but is intentionally non-functional and simplified for durability in hobby use.
Design intent and era: the sculpt draws visual cues common to mid-20th century cab-over tractors — short bonnet, upright cab face, rounded wheel arches and twin rear axles — while remaining deliberately non-branded. The surface language favors legible shapes and reinforced details so the piece performs well on layouts, in diorama vignettes, or as a starting point for kitbashing and fleet repainting.
Print and workflow notes (for hobbyist printers and kitbashers): the mesh is provided as a single HO 1:87 master STL that is manifold and watertight. Small detail areas are strengthened and panel lines are shallow to avoid trapping filament and to accept washes and weathering. If you prefer multipart printing or alternate materials, split the mesh in your CAD tool or slicer; the master STL is intentionally supplied as a single-piece tractor unit. Recommended slicer starting points for hobby prints at HO scale: layer height 0.12–0.20 mm, wall thickness 1.2–2.0 mm (adjust for nozzle size), and 10–20% infill for display prints. Consider local thickening of mirror stubs or the fifth-wheel cue if you scale down further than HO or if you require rugged handling.
Scale and conversion: Miniature Reality provides exactly one master at HO 1:87. To print at a different scale, uniformly scale the STL in your slicer by the ratio of the target scale denominator to 87 (for example, to print at 1:48 scale use a scale factor of 87/48 ≈ 1.8125; to print at 1:160 use 87/160 ≈ 0.544). After scaling, inspect wheel diameters and small appendages and consider local reinforcement for very small target scales.
Applications: this tractor unit is ideal for HO model railroad road traffic, industrial spur scenes, loading-dock dioramas, roadside vignettes, photography sets, and base parts for kitbashing. Its generic, stylized presentation makes it an excellent candidate for fleet painting, adding aftermarket trailers or cargo bodies, or serving as an unobtrusive tractor head in mixed-era layouts.
Limitations and provenance: this asset originates from a legacy clay-render project and intentionally prioritizes readable shapes over manufacturer-accurate replication. Stage 1 metadata indicates automated identity confidence is low and measurements were not authoritative; real-world prototype dimensions are estimated below. If you require a brand-accurate replica, precise prototype measurements, or a multipart, pre-split file, request a custom modeling job.
Licensing: standard Miniature Reality hobby use terms apply. Personal and small-run hobby printing and finishing are permitted. Redistribution for commercial mass production is not permitted without authorization.
Advanced notes: the mesh is optimized for clarity at HO scale with reinforced small details to reduce print failures. For production work consider splitting the mesh, thickening thin elements after scaling, or reworking delicate regions to suit your material and workflow.
Miniature Reality Personal-Use License (No AI / No Resale)
- Allowed: personal printing for your own layouts, dioramas, tabletop games, and personal display.
- Not allowed: sharing or distributing the digital files (free or paid), re-uploading to any site, bundling, remix resale, or selling/redistributing printed outputs.
- Not allowed: using the files (or derivatives) to train, fine-tune, test, or feed any AI/ML system (including dataset creation).
- Not allowed: commercial use of any kind without a separate written commercial license from Miniature Reality.
- Note: digital files may include purchaser-linked identifiers / forensic watermarking to help investigate unauthorized distribution.
