This asset is a production-ready 1:87 (HO) master designed as a compact prop representing a generic early-to-mid 20th century folding bellows film camera. The geometry captures the readable silhouette and tactical cues of classic folding cameras while avoiding fragile micro-geometry that would fail at small layout scales.
Visible and modeled features

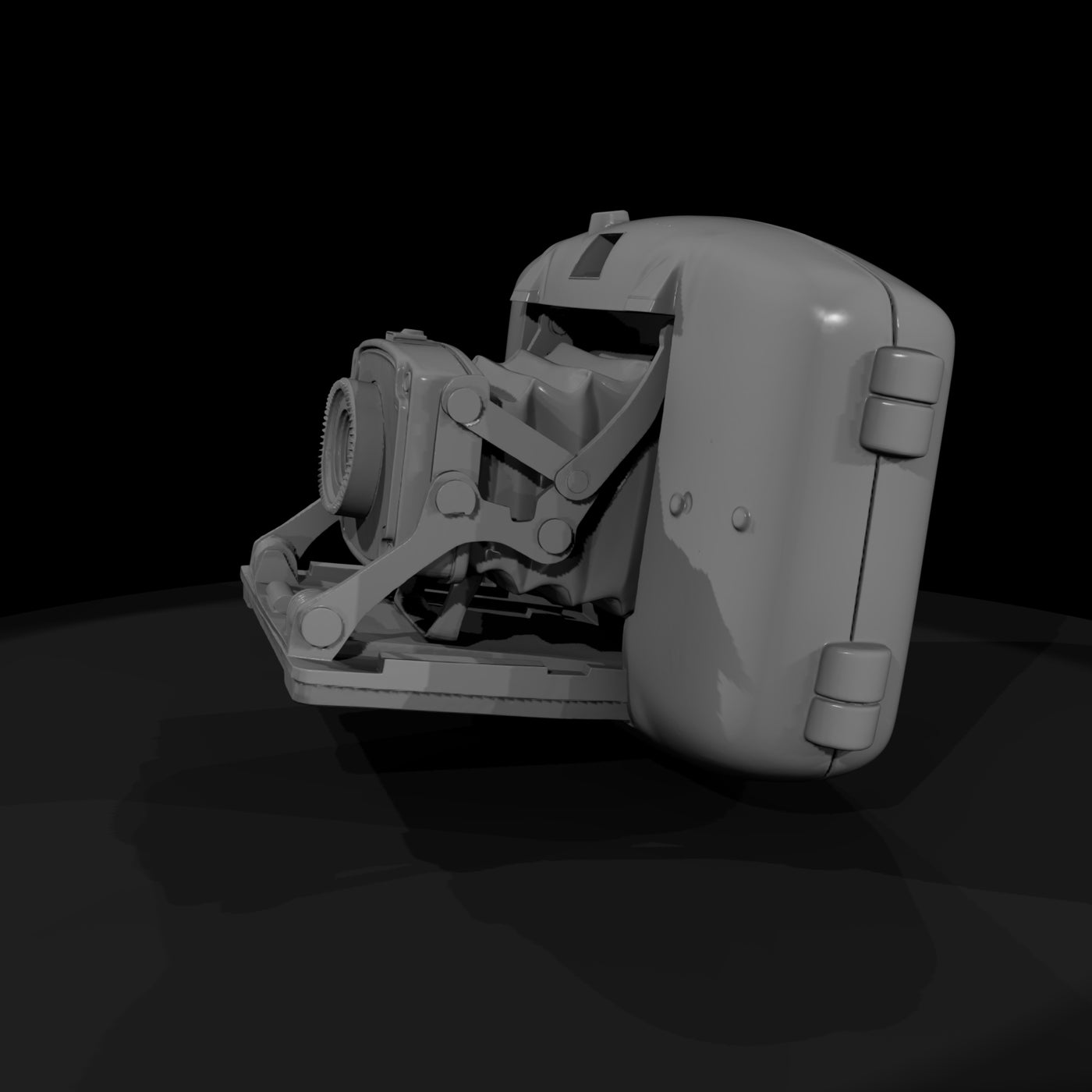

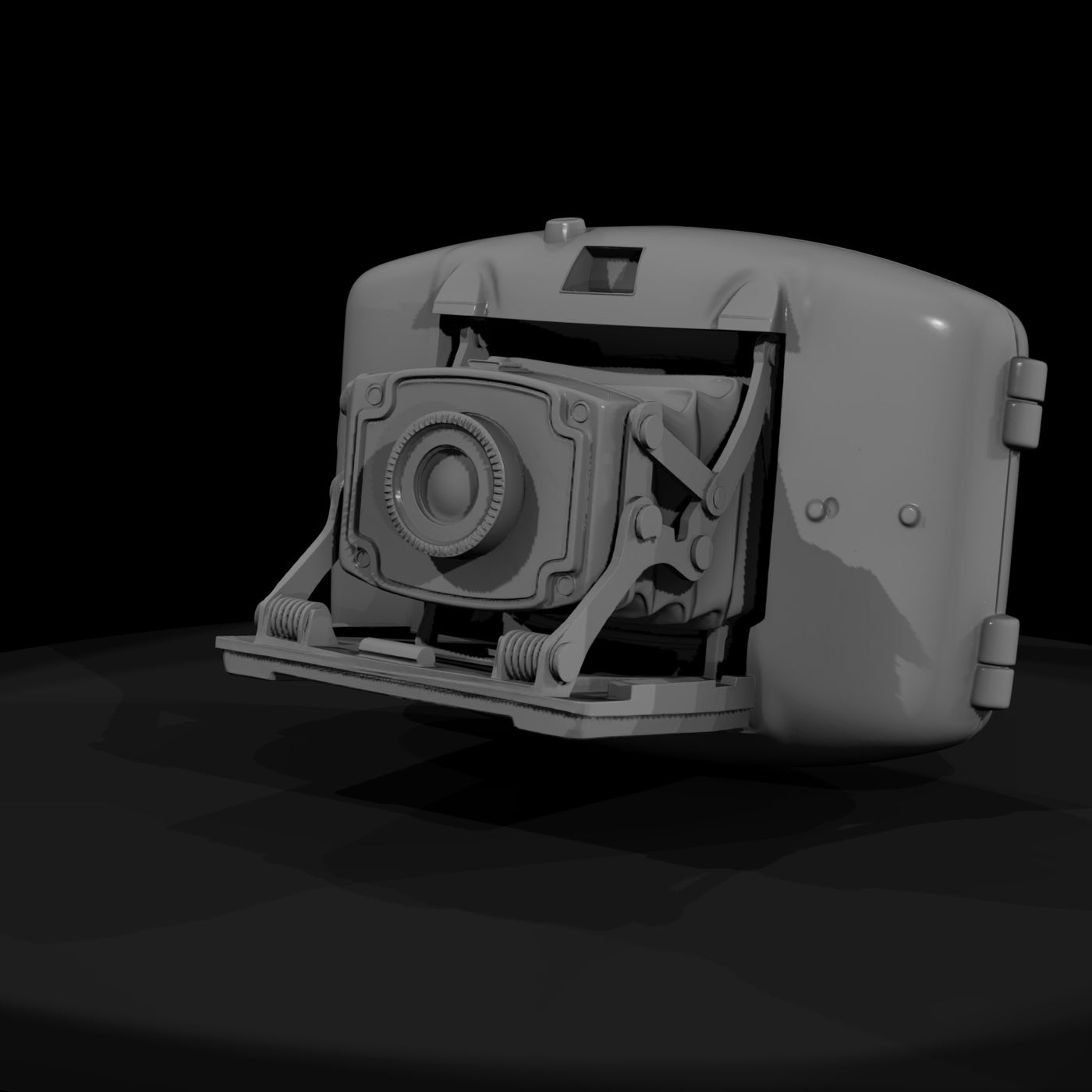

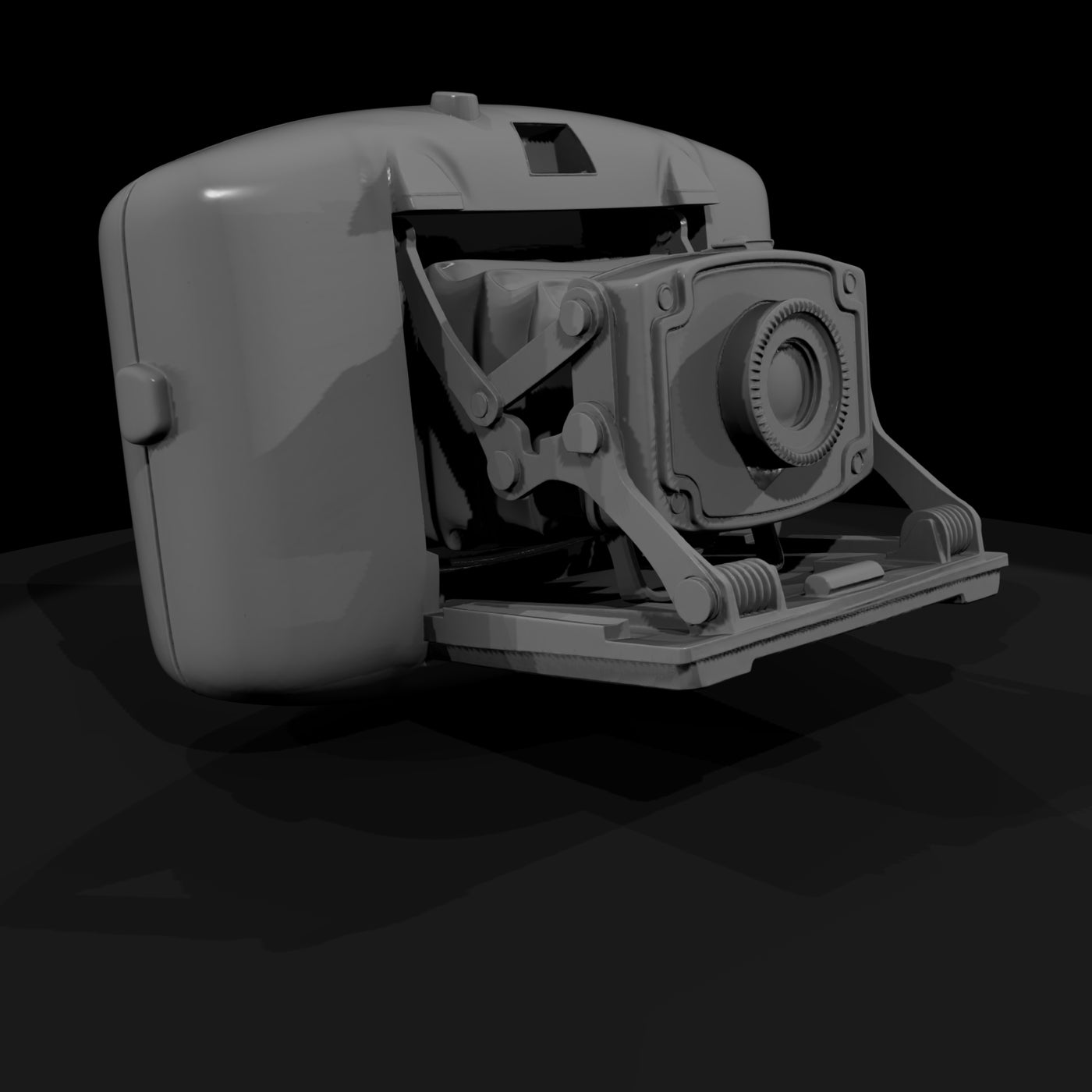

- Hinged lens board: the front lens plate is modeled as a hinged fold-out panel with a raised circular lens plate and a simplified shutter face. The lens area reads as a single, slightly recessed circular element and avoids open, delicate spokes.

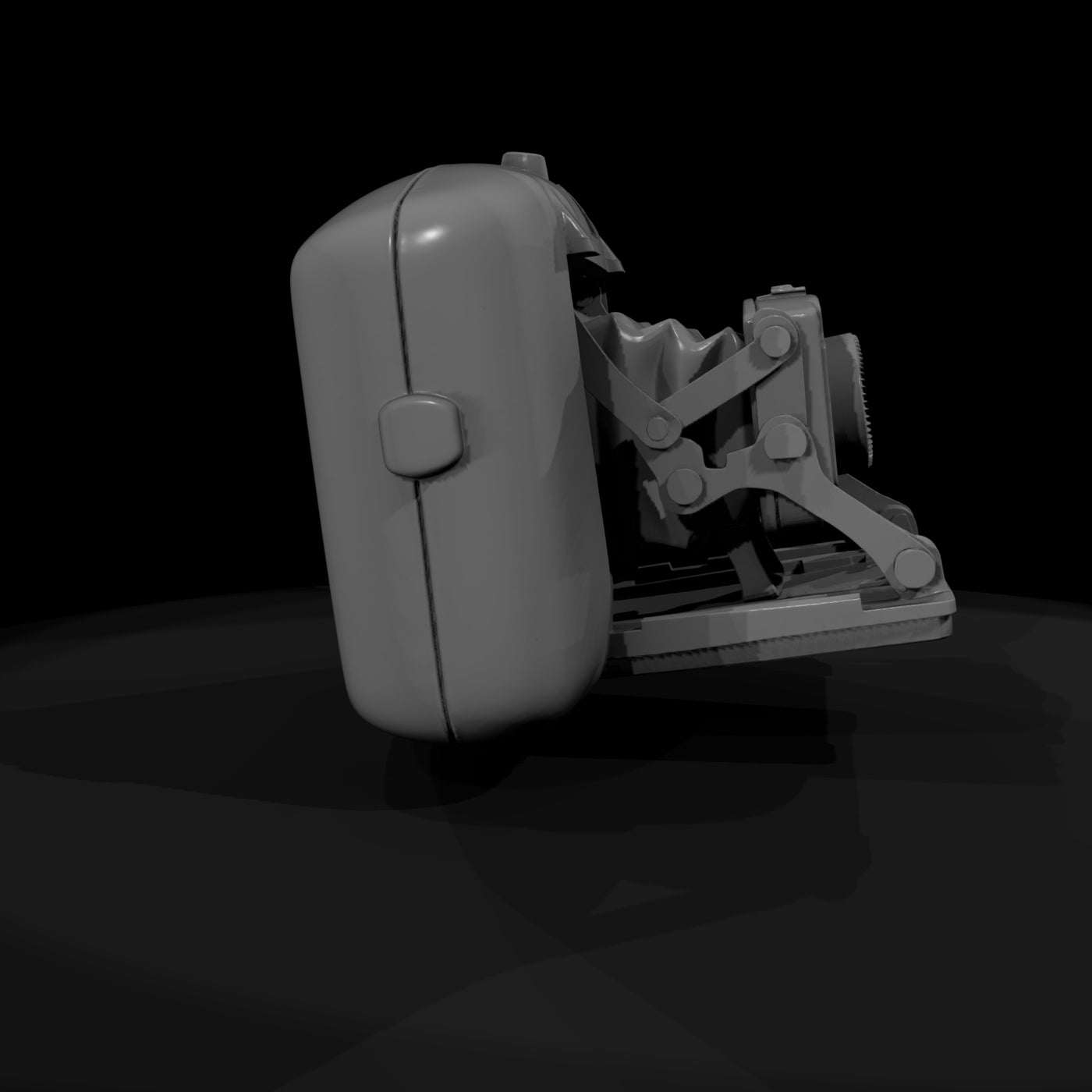

- Pleated bellows: the bellows are modeled as a continuous pleated shell with crisp regular fold lines sized for visual legibility at HO scale. Pleats are intentionally given a slightly exaggerated depth so they remain visible under paint and from typical viewing distances on model layouts.

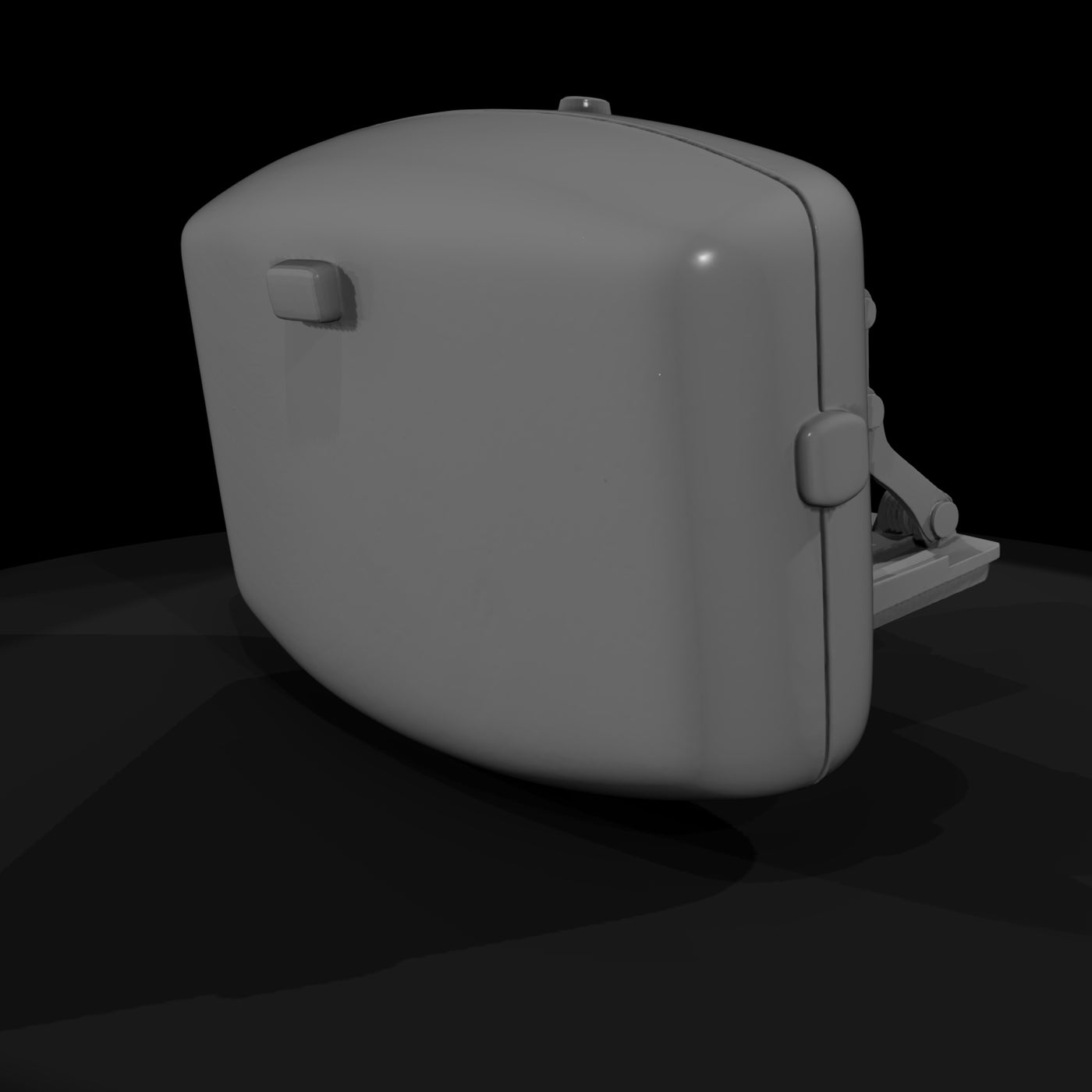

- Leatherette body and trim: the body panels display a subtle leatherette relief and are framed by simplified metal trim and beadings to imply seams and fasteners without thin fragile edges.

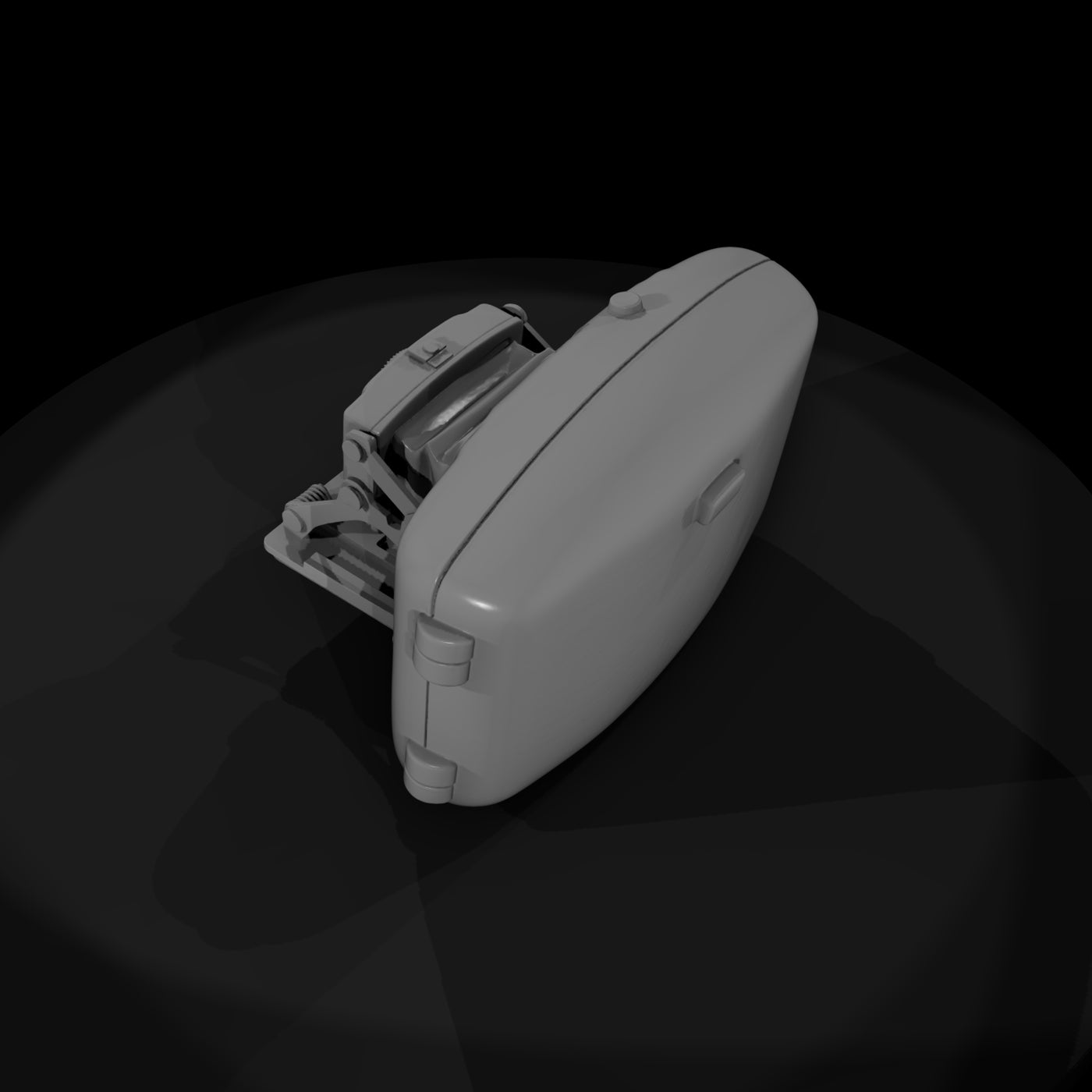

- Sturdy fittings and controls: strap lugs, hinge bearings, and small control knobs are thickened and filleted to reduce breakage risk while still reading convincingly as controls. A shallow top-mounted viewfinder hump and flattened rectangular footprint are included so the piece sits naturally on shelves, tables, or layout interiors.
- Printability-first topology: the mesh intentionally simplifies microscopic hardware such as tiny shutter spokes, pin hinges, and open fasteners. Hinges and fasteners are suggested with raised plates and fillets so the camera reads convincingly without structural weak points at small scales.
What you receive
One high-resolution STL file scaled and locked to 1:87 (HO). The mesh preserves readable bellows, a single lens/shutter face that reads as a lens, and robust strap lugs and knobs for practical printing and handling. No brand text, logos, or maker-specific markings are present; the asset is intentionally generic for broad period use.
Scale and scaling instructions
This download contains a single master STL at 1:87 (HO). We do not provide multiple scale-specific STLs. To print at another scale, uniformly rescale the mesh in your slicer or modeling tool using the ratio between 87 and your desired denominator (for example, to move from 1:87 to 1:48 multiply model dimensions by 87/48). Be aware that scaling up will increase the apparent bulk of intentionally thickenend knobs and fittings; scaling down may reduce the visual read of the pleated bellows.
Recommended print notes (summary)
- Orient the camera on its back or side to reduce supports across the bellows face. Light contact supports on the rear body are advised to avoid marring the leatherette relief.
- If hollowing is desired for resin prints, split the bellows shell along a pleat seam and add drainage before hollowing.
- Fine layer heights will best reproduce the bellows and leatherette relief; thicker layers will still yield a usable prop but may soften fine fold lines.
Intended placement and use
This prop is designed for interior vignettes, cabinet of curiosities shelves, dresser-top scenes, photographer vignettes, and HO-scale model-railroad interiors. Its compact footprint, readable bellows silhouette and simplified surface cues make it suitable both for close interior dioramas and medium-distance layout scenes.
Provenance and limitations
Source metadata identifies this as a legacy MeshRef stub project intentionally left generic and non-branded. Exact make, model year, and manufacturer are not specified. Treat the piece as an early-to-mid 20th century folding bellows camera prop for period-appropriate scenes.
Included files
Single high-resolution STL at 1:87 (HO) master scale. No additional scale-specific STLs are included. If you need assistance calculating scale factors or advice for a particular printer and material combination, contact support with your target scale and printer platform.
